Overview
Specimen Track 4G wireless collection data is based on LoRa RF technology. It’s mainly used for collecting multiple environmental data distributed in different long-range areas and transparent data transmission from device to cloud. With LoRa modulation technology, it’s capable of realizing multiple IO device monitoring, collecting data of temp & humidity, intensity of lighting, CO2, wind direction & speed and soil condition.
Features
- 12 V power adaptor

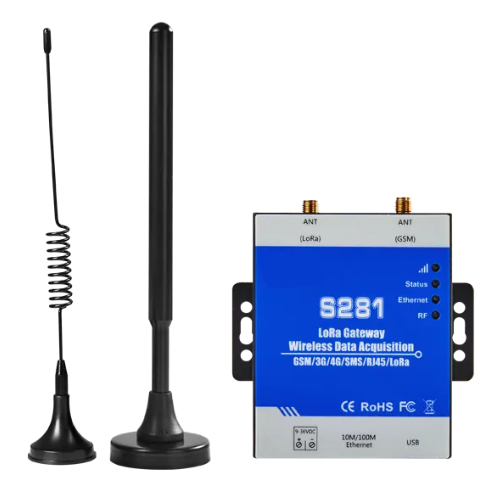

- 4G antenna
- Waterproof
- Dust Proof
Technical Specifications
| Input Voltage | 9 V DC to 36 V DC |
| Power Consumption | Normal: 130 mA at 12 V, Max: 150 mA at 12 V |
| Power Supply | USB |
| Qty | 1 |
| Interface Spec | 1 Mini USB, 1 RJ 45, 10 Mbps / 100 Mbps |
| Protection Protocol | ESD air: 15 KV, Surge: 4 KV |
| Frequency Band | 402 MHz to 500 MHz |
| Urban Communication Distance | 39370.1 in (1 km) |
| Anti-Reverse, ESD | Air: 15 KV, Surge: 4 KV |
| Backup Battery | 3.7 V / 900 mAh |
| Ethernet | 10 Mbps / 100 Mbps |
| Working Temperature And Humidity | -50 °F to 185 °F (-45 ℃ to 85 ℃), 5% RH to 95% RH |
| Storage Temperature And Humidity | -49 °F to 221 °F (-45 ℃ to 105 ℃), 5% RH to 95% RH |
| Shell | Metal |
| Protection Level | IP 30 |
| Net Weight | 0.51 lb (235 g) |
| Size | 3.35 in x 2.95 in x 1.18 in (85mm x 75mm x 30mm) (L x W x H) |
