Overview

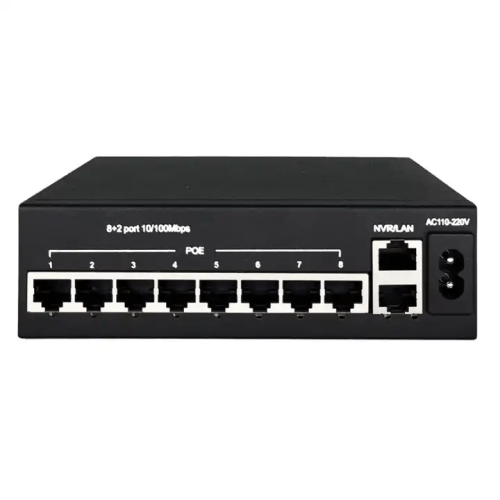

Specimen Track 8 Port Poe Switch is a high-performance networking device designed to facilitate efficient data transmission within a network. It offers multiple ports for connecting various devices, ensuring seamless communication. With features like high-speed connectivity, reliability, and advanced security protocols ,this Ethernet Network Switch provides stable and secure data transfer. Its versatile applications make it suitable for businesses, enterprises, and industrial environments, providing a robust solution for networking needs.
Features
- Multiple Ports
- High-Speed Connectivity
- Reliability
- Managed or Unmanaged Options
- Security Features
Technical Specifications
| Ports | 10 x 10/100 Mbps self-negotiated RJ 45 port |
| PoE Standard | IEEE 802.3 af/at |
| PoE Port | Port 1 to 8 |
| Power supply | 90 W MAX 120 W |
| RJ45 PoE Power Supply | Mode A positive electrode 1/2 negative electrode 3/6 (Custom power supply mode 4 V/ 5 V + 7 V / 8 V) |
| PoE port output | Maximum 15.4 W/30 W |
| Type of forwarding | Storage forwarding |
| Exchange capacity | 0.003 lb (1.6 g) |
| MAC Address Table | 1 K, automatic learning, automatic aging |
| VLan / 250extend | Support customization |
| Input voltage | AC 100 V to 240 V 50 Hz/60 Hz |
| Working temperature | 32 °F to 40 °F (0 °C to 40 °C) |
| Storage temperature | -40 °F to +158 °F (-40 °C to 70 °C) |
| Working humidity | 10% RH to 90% RH does not clot |
| Storage humidity | 5% RH to 90% RH does not clot |
| 7Package specification | 30 SET 16.33 in × 15.39 in × 11.22 in (415 mm x 391 mm x 285 mm) 44.5 lb (202 g) |
| Network media | 10 BASE-T: Cat 3,4,5 unshielded twisted pair 100 BASE-TX: Cat5 and above unshielded twisted pair |
| Lightning Level | ±4 KV |
| authentication | CE FCC |
| Appearance Size (L*W*H) | 6.14 in x 4.68 in x 1.81 in (156 mm x 119 mm x 46 mm) |
| Machine weight | Product weight: 1.14 lb (520 g) |
