Overview

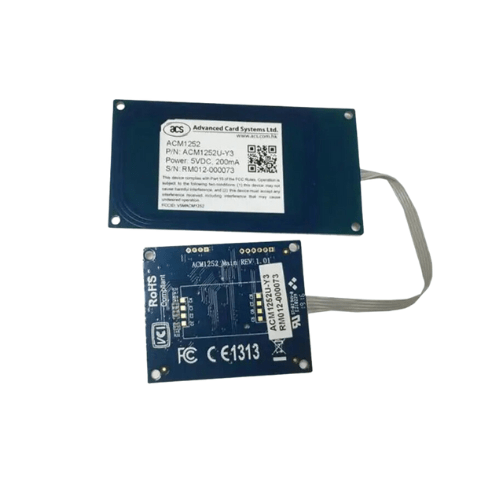

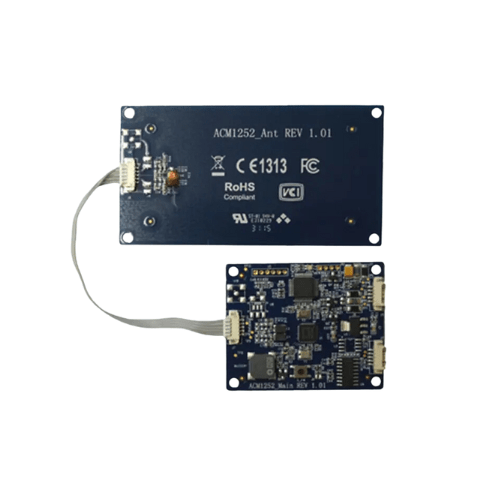

Specimen Track ACM 1252 U To Y 3 NFC Reader Or Writer Module. This smart card reader module is designed for fast and easy integration into embedded systems. It also supports other NFC devices with access speeds of up to 424 Kbps. It is the perfect front-end interface module to enable NFC transactions for applications involving integrated systems.
Features
- USB CCID Protocol
- Compact Dimensions
- Contactless Smart Card Interface
- Smart Card Read or Write speeds
- SAM Card Interface
- Built-In LED
- Versatile Application Integration
Technical Specifications
| Operating Frequency | 13.56 MHz |
| PC-Linked Mode | PC or SC |
| Supply Voltage | 5 V |
| Standard | ISO 7816 Class A (5 V) |
| Smart Card Read Or Write Speed | 9.6 Kbps to 344 Kbps |
| Protocol | ISO 14443-A |
| Temperature | 32 °F to 140 °F (0 °C to 60 °C) |
| Dimension | 3.93 in X 2.36 in X 0.39 in (10 cm X 6 cm X 1 cm) |
| Weight | 10.58 oz (300 g) |
