Overview

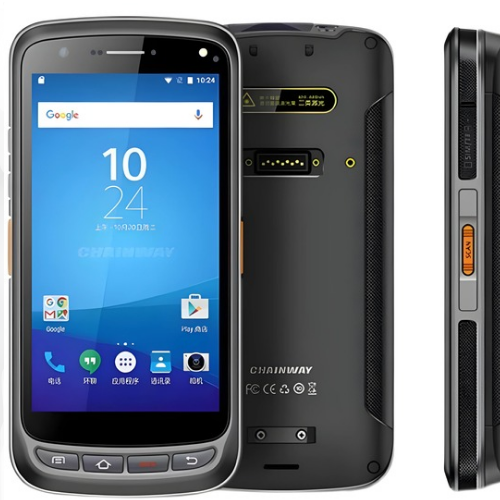

Specimen Track Android Data Collector UHF RFID Card Reader has advantage of free SDK provided, professional technical team support. It supports customized service in hardware and software, and also integrated devices with various functions modules such as 2D scanner, NFC or UHF or LF RFID reader, fingerprint sensor, IRIS recognition, face recognition.
Technical Specifications
| Frequency | 865 MHz to 868 MHz or 902 MHz to 928 MHz or 920 MHz to 925 MHz |
| Protocol | EPC C1 GEN2 or ISO 18000-6C |
| Antenna Amplification | Round antenna (2dBi) |
| Read Or Write Area | 0 ft to 6.5 ft (0 m to 2 m) (depending on tags and environment) |
| Frequency (RFID LF) | 125 kHz or 134.2 kHz (FDX-B/HDX) |
| Protocol (RFID LF) | ISO 11784 and 11785 |
| Frequency (HF or NFC) | 13.56 MHz |
| Protocol | ISO 14443A & 15693, NFC-IP1, NFC-IP2 |
| Read Or Write Area | 1.18 in to 1.97 in (30 mm to 50 mm) |
| Installation | Internal (125) |
| Interface | Type-C |
| Material | ABS |
| Structure | RFID Card |
| Application Field | Fiscard |
| Operation Function 1 | Biometric Fingerprint Scanner |
| Operation Function 3 | UHF RFID Reader |
| Operation Function 5 | Lf 134.2 K Reader |
| Application | Inventory or Logistcs or Asset Stocktaking |
| Read-Write Method | Non-Contact Type |
| Card Slots | 3 Card Slot |
| Type | SD or SIM or Psam |
| Function | Information, Encrypt or Decrypt, Identification, Barcode or RFID or Fingerprint Scanner |
| Data Transmission Mode | Parallel |
| System | Android 10 |
| Operation Function 2 | Qr Code Scanner |
| Operation Function 4 | LF 125 K Reader |
| Operation Function 6 | NFC 13.56 MHz Card Reader |
| On-screen Display | 5.5 in (13.9 cm) IPS FHD |
| Expand Port | 1 PSAM, 1SIM, 1 TF |
| Communication Interface | Type C |
| Battery Capacity | 3 V,8 V 4800 mAh |
| Camera | Front 500 W Rear 1300 W autofocus camera, matching automatic flash, support flashlight mode. |
| CPU | Octa Core 64bit Processor, 2.0 GHz |
| Operating System | Android 10.0 |
| SDK | Handheld-Wireless Software Development Kit |
| Language | Java |
| Tools | Eclipse or Android Studio |
| Storage | 2 GB RAM, 16 GB ROM (STANDARD) or 4 GB RAM, 64 GB ROM (OPTIONAL) Supports expansion up to 256 GB Micro SD card |
| 4G | TD-LTE Band 38 or 39 or 40 or 41 FDD-LTE Band 1,2,3,4,7,17,20 |
| 3G | WCDMA (850 MHz or 1900 MHz or 2100 MHz) |
| 2G | GSM or GPRS or Edge (850 MHz or 900 MHz or 1800 MHz 1900 MHz) |
| WLAN | 2G, 4G or 5G Dual-Frequency WIFI, IEEE802,11 a/b/g/n/ac |
| Bluetooth | Bluetooth Class v2.1 + EDR, Bluetooth v3.0 + HS, Bluetooth v4.0 |
| GPS | GPS (AGPS), BeiDou, accuracy of 16.4 ft (5 m) |
| 2D CMOS Imager (2D scanner) | Zebra SE4710 or Newland NLS N1 usw. |
| Symbologies (2D Scanner) | PDF417, MicroPDF417, Composite, RSS, TLC-39, DataMatrix, QR Code, Micro QR Code, Aztec, MaxiCode; Postal Code: US POSTNET, US Planet, UK Postal, Australian Postal, Japan Postal, Netherlands Post, etc. |
| Sensor | TCS1 or FBI |
| Sensor Type | Capacitive Area Sensor |
| Resolution | 508 DPI |
| Achievement | FRR < 0.008 %, FAR< 0.005 % |
| Capacity | 1000 |
| Range | 11.81 in to 15.75 in (300 mm to 400 mm) |
| Tariff | < 150 ms |
| FAR | 1 or 10000000 |
| Protocol (Aperture Detection) | ISO or IEC 19794-6, GB or T 20979-2007 |
| Protocol (PSAM Security) | ISO 7816 |
| Baud rate | 9600, 19200, 38400,43000, 56000, 57600, 115200 |
| Slot | 2 slots (maximum) |
| Standard | 1 x Lithium Polymer battery, 1x power adapter, 1 x Type-C charging cable, 1 x wrist strap, 1 x protective film |
| Optional | Charging station, spare battery |
| Dimensions | 6.5 in X 3.1 in X 1.0 in (166 mm X 79 mm X 27 mm) |
| Weight | 14.1 oz (400 g) |
