| CPU |
Intel® Celeron J4125, Quad core, 2.4 GHz, Fanless |
| Memory |
4 G DDR4 (8 G optional) |
| Hard Drive Capacity |
64 G SSD |
| Hard Drive Optional |
SSD: 32 G, 128 GB, 256 GB HDD: 500 GB, 1 TB |
| Graphics |
CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio |
Realtek ALC662, High-Definition Audio (HD), Line in, Line out |
| Network |
1xRealtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network |
WIFI&Blue tooth or 4 G LTE Optional |

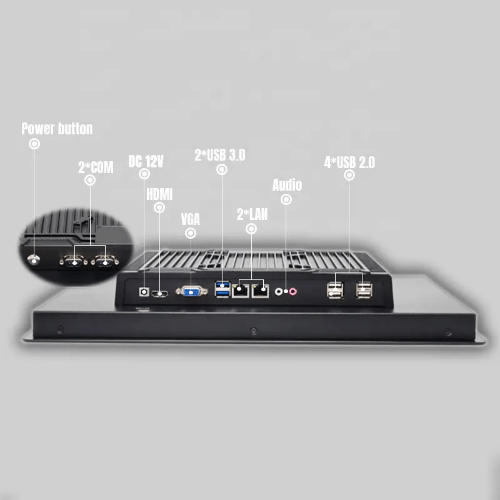

| I/O Interface |
2xUSB 3.0, 4xUSB 2.0, 2xCOM RS232 1xVGA or HD-MI or RJ45 or Audio OUT or MIC IN or POWER DC or Phoenix terminal |
| Operation System |
Support Win 10 or 11, Linux, Ubuntu, Debian, etc. |

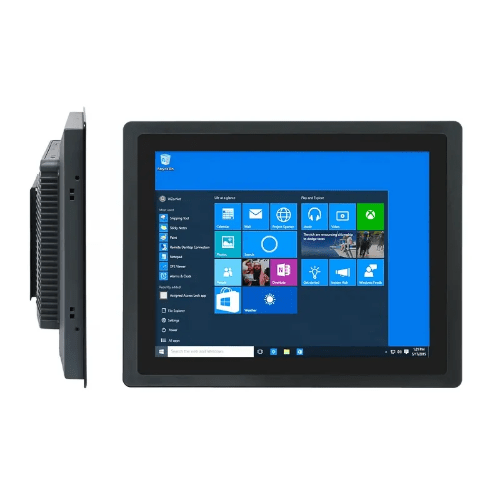

| Panel size |
15 in (3.81 cm) |
| Resolution |
1024 pixels x 768 pixels |
| Aspect ratio |
16:9 |
| Support Color |
16.7 M colors |
| Brightness |
300 cd/m² |
| Response time |
5 ms |
| Contrast ratio |
1000:1 |
| View angle |
80° or 80° or 80° or 80° (R or L or U or D) |
| Touchscreen Type |
Project Capacitive Touch (10 points) |
| Touch Interface |
USB (RS232 optional) |
| Touch response time |
2 ms |
| Luminousness |
90% |
| Surface Hardness |
7 hrs |
| Working life |
>50 million times |
| Touch options |
(5 wire resistive touch optional) |
| External Power Supply |
AC 100 V to 240 V |
| Working voltage |
DC 12 |
| Power consumption |
≤25 W |

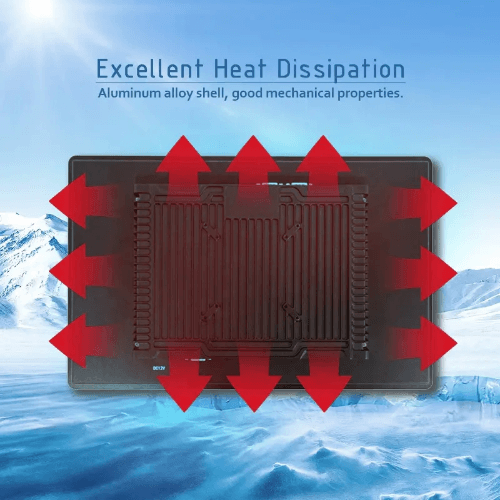

| Material |
Aluminum Alloy |
| Color |
Silver, Black, white, color can be customized |
| VESA mounting |
2.95 in x 2.95 in or 3.93 in x 3.93 in (75 mm x 75 mm or 100 mm x 100 mm) |
| IP grade |
Front panel IP 65 waterproof |
