Overview

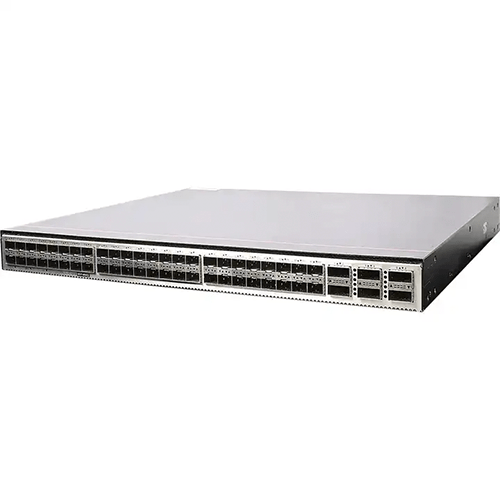

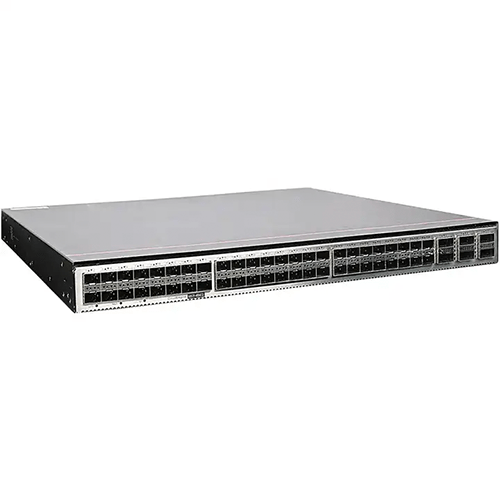

Specimen Track connect master provides high performance, port density, and low latency for building cloud-centric data center networks. They incorporate advanced hardware with 10 GE or 25 GE access and 40 GE or 100 GE uplink interfaces, along with advanced data center features, high-performance stacking, and adaptable airflow. These switches are ideal for core and aggregation layers, empowering enterprises to create scalable, straightforward, open, and secure networks.
Features
- High-performance, port-dense switches for cloud data centers
- Featuring 10 / 25 GE access, 40 / 100 GE uplinks
- Suitable for core and aggregation layers
Technical Specification
| Downlink Ports | 48 x 10 GE SFP+ |
| Uplink Ports | 6 x 40 / 100 GE QSFP28 |
| packet forwarding rate | 2000 Mpps |
| CPU | 4-core, 1.6 GHz |
| Memory | DRAM: 4 GB |
| NOR Flash | 128 MB |
| SSD Flash | 8 GB |
| USB | Supported |
| Maximum power consumption | 318 W |
| Rated input voltage | 600 W AC & 240 V DC power module: AC: 100 V AC to 240 V AC, 50 / 60 Hz
DC: 240 V DC 1000 W DC power module: -48 V DC to –60 V DC 1200 W high-voltage DC power module: 240 V DC to 380 V DC |
| Long-term operating temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Storage temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
| Dimensions (W x D x H) | 17.4 in x 16.5 in x 1.7 in (442 mm x 420 mm x 43.6 mm) |
