Overview

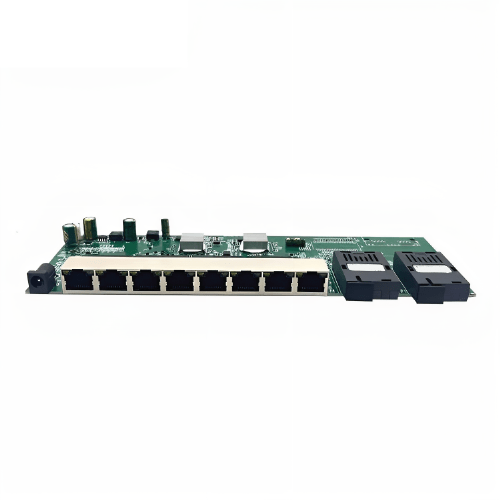

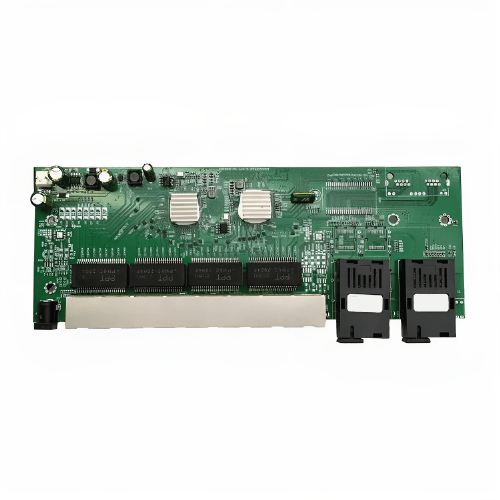

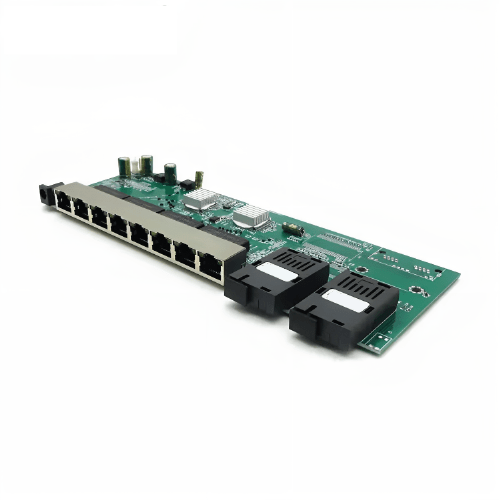

Specimen Track connect xpert is a unmanagement commercial Ethernet switch module. It supports 8 Gigabit socket-type Ethernet ports and return PoE DC 12 V to 24 V power input. It is suitable for embedded development integration of different scenarios.
Feature
- Port 1 to 7 PoE in 8 Poe out
- Wide range DC 12 V to 48 V
Technical Specification
| Ports | 8 x 10 Mbps / 100 Mbps / 1000 Mbps self-negotiated RJ 45 port 2 FIBER 1310 + 1550 SC 3 KM |
| PoE Port | Port 1 to 7 POE IN 8 POE OUT |
| Voltage range | DC 12 V ( 24 V) 48 V |
| RJ45 PoE Power Supply | 4 / 5 V+ 7 / 8 V- |
| Type of forwarding | Storage forwarding |
| Exchange capacity | 10 G |
| MAC Address Table | 1 K, automatic learning, automatic aging |
| VLAN / 250 extend | Support customization |
| Working humidity | 10% to 90% RH does not clot |
| Storage humidity | 5% to 90% RH does not clot |
| Network media | 0BASE-T: Cat 3, 4, 5 unshielded twisted pair (£100 m)
100 BASE-TX: Cat5 and above unshielded twisted pair (£100 m) |
| Lightning Level | ±4 KV |
| authentication | CE FCC |
| Working temperature | 32 °F to 104 °F (0 ℃ to 40 ℃) |
| Storage temperature | -40 °F to 158 °F (-40 ℃ to 70 ℃) |
| Appearance Size (L x W) | 8.7 in x 1.38 in ( 221 mm x 35 mm) |
| Machine weight | 0.30 lb (140 g) |
