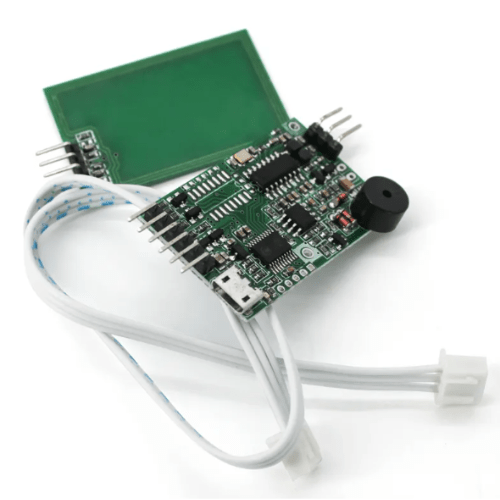

Specimen Track Double Frequency RFID Reader Module 13.56 MHz and 125 KHz

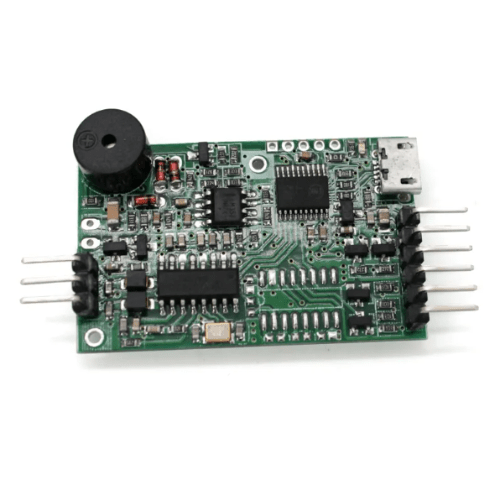

Specimen Track Double Frequency RFID Reader Module 13.56 MHz and 125 KHz - Image 2

Specimen Track Double Frequency RFID Reader Module 13.56 MHz and 125 KHz

Specimen Track Double Frequency RFID Reader Module 13.56 MHz and 125 KHz. Compact size, SMT mounting, easy to integrate into the advertising machine, electronic class, integrated LCD screen, electronic door lock, access control, attendance, and other terminal equipment.

SKU: STRHMOD-144 Category:

Overview

Specimen Track Double Frequency RFID Reader Module 13.56 MHz and 125 KHz. Compact size, SMT mounting, easy to integrate into the advertising machine, electronic class, integrated LCD screen, electronic door lock, access control, attendance, and other terminal equipment.



Features

  • Operating Frequency
  • Protocol Support
  • Communication Interfaces
  • Status Indicators
  • Wide Operating System Support
  • Power Supply Flexibility
  • Versatile Application



Technical Specifications

Operating Frequency 125 KHz and 13.56 MHz
Power Supply Supports 3.3 V to 5.5 V
Current Consumption Less than 100 mA
Reading Range 0 in to 1.96 in (0 mm X 50 mm)
Operating Humidity Relative Humidity of 0% RH to 95% RH
Protocol ISO 14443-A
Temperature 14 °F to 158 °F (-10 ℃ to 70 °C)
Dimension 1.65 in X 1.06 in X 0.15 in (42 mm X 27 mm X 4 mm)
Weight 0.35 oz (10 g)
