Overview

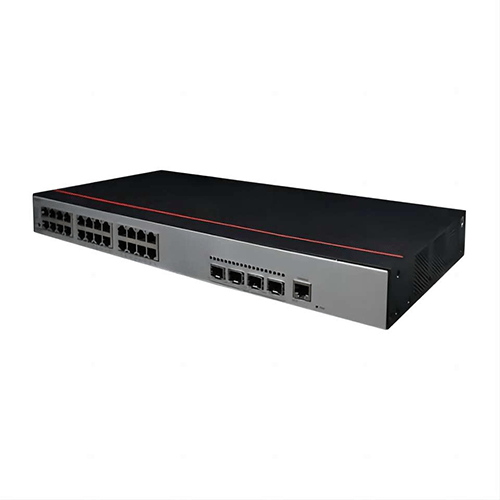

Specimen Track Ethernet Fiber Network Switch provides resilient, high-density Layer 3 switching for data centres. Features include multiple-terminals, HD video surveillance, and video conferencing applications. Intelligent I Stack clustering, 10 Gbit/s upstream ports and IPv6 forwarding enable use as aggregation switches in enterprise campus networks.
Features
- The network is more stable
- Higher performance
- High power
Technical Specifications
| Item | Value |
| Ports | ≥ 24 |
| Transmission Rate | 10 Mbps or 100 Mbps or 1000 Mbps or 10000 Mbps |
| Function | LACP, POE, QoS, SNMP, Stackable, VLAN Support |
| Communication Mode | Full-Duplex and Half-Duplex |
| Switch Capacity | 336 Gbps or 3.36 Tbps |
| Application level | 3 |
| Fixed Ports | 24 10 or 100 or 1000 BASE-T Ethernet ports, 4 10 Gigabit SFPs |
| Port | 28 |
| Packet forwarding rate | 108 or 126 Mbps |
| Height of case | 1 U |
| IP Routing | Static route, RIP, RIPng, OSPF, OSPFv 3 |
| Characteristic | MAC address table, WLAN, ring protection, MPLS, IPV6 |
| Dimensions (H x W x D) | 17.40 in x 8.66 in x 1.71 in (44.2 cm x 22 cm x 4.36 cm) |
| Weight | 0.86 lb (391 g) |
