Overview

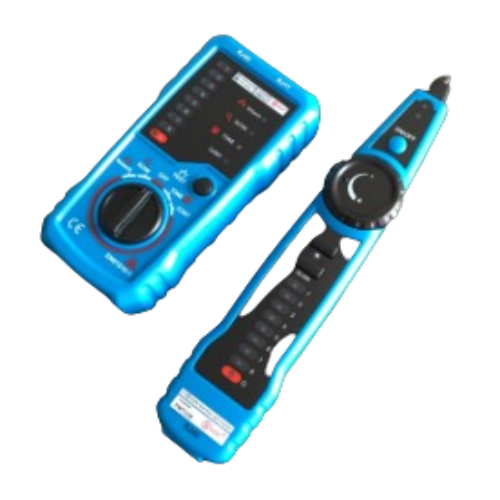

Specimen Track Ethernet LAN Cable Network Tester is a multi-functional handheld cable testing tool.It has wide application with reinforced cable types and multiple functions.A necessary testing tool for telecommunication engineering, wiring engineering and network maintenance person.
Features
- Works perfect when RJ11, RJ45 cable is on power
- Trace RJ11, RJ45 cables or other metal wire (via adapter)
- Easy and fast to locate the breakpoint without opening the wire’s cover
- Check wire continuity
- Test the work status of telephone line (idle, ringing, off hook)
- Judge TIP and RING line
- Test line level, positive and negative polarity
- Judge short circuit, breaking circuit, open circuit and crossing
Technical Specifications
| Altitude | <2000 m (6561.67 ft) |
| Anti Explosion Rating | IP 40 |
| Distance of Emitting Signal | 300 m (984.25 ft) |
| Emitter Battery | 6F22 per 9 V |
| Receiver Battery | 6F22 per 9 V |
| Power Supply | Electronic, DC 9 V battery |
| Signal Output Level | 8 Vp per p |
| Test Type | UTP & STP RJ45, RJ11 |
| Signal Transmission Distance | 3 km Min (9842.51 ft) |
| Operating Temperature | 32 oF to 104 oF (O oC to 40 oC), (non condensing) |
| Storage Temperature | 14 oF to 122 oF (-10 oC to 50 oC), (non condensing) |
| Size | 8.26 in x 4.72 in x 1.96 in (21 cm x 12 cm x 5 cm) |
| Weight | 0.66 lb (0.300 kg) |
