Overview

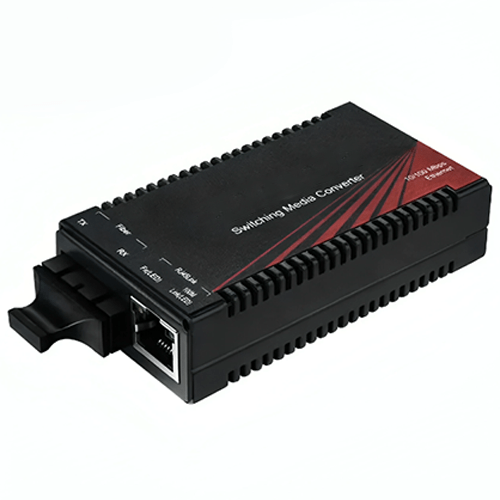

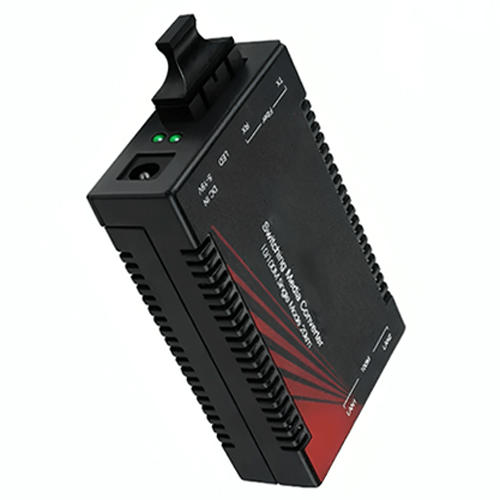

Specimen Track ethernet media converter is used for exchanging Ethernet and fiber. The machine comprises 2 Ethernet ports and 2 fiber ports and expanded the LAN cable transmission distance from 320.8 ft (100 m) to 1.2 mi (2 km). It realized the inter connections between different telecom equipment and widely been used in Telecommunication, CATV, Bandwidth network, CCTV where demands high performance and reliability network environment.
Features
- Special used for exchanging between Ethernet LAN cable and Fiber
- Special made chip with low consumption, supporting over longtime frame
- Superior Photoelectric integrated module
- Which provide good optical and electrical performance
- Ensure the reliability of data transmitting, long operating life span
- Support Internal and External, 1.5 U rack mount
- Optional installation method
- Average of No trouble working time to 50000 hrs
Technical Specifications
| Interface | Twisted pair cable, RJ45, Fiber SC or ST or FC |
| 1000 base LED | PWR, FX 100, FX Link or Act, FDX, TX 100, TX Link or Act |
| Transmission Speed | LAN cable 10 Mbps, 100 Mbps, 1000 Mbps, Fiber 1000 Mbps |
| Duplex Way | Ethernet duplex or half duplex |
| Flow control | Full duplex IIEEE 802.3 x flow control Half duplex back flow control |
| LAN Cable | Category 5, Category 5 E, Category 6 |
| Fiber Type | Single mode 8.3 or 125,8.7 or 125,9 or 125,10 or 125 u |
| Power | AC 110 V to 240 V wide voltage input, 50 Hz DC, 12 V 0.5 A (Compatible 5 V to 19 V, 6 W), equipped with USA, British, Europe, Austria total 4 types of changeable plug |
| Environment Temperature | -4 ℉ to 149 ℉ (-20 ℃ to 65 ℃) |
| Storage Temperature | -4 ℉ to 158 ℉ (-20 ℃ to 70 ℃) |
| Humidity | 5 % to 90 % |
| Size | 3.3 in x 1.8 in x 0.8 in (86 mm × 48 mm × 22 mm) |
