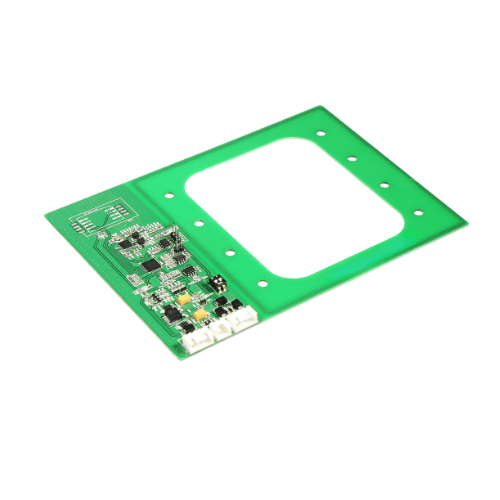

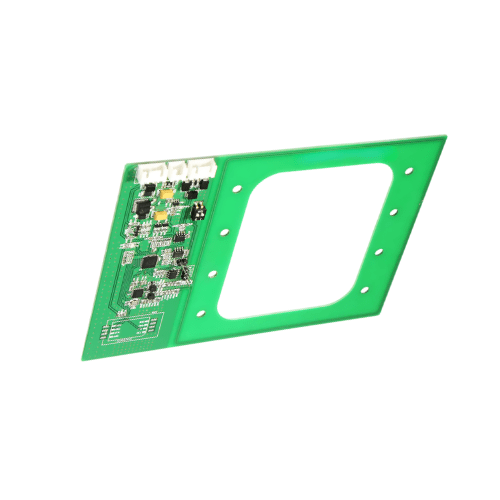

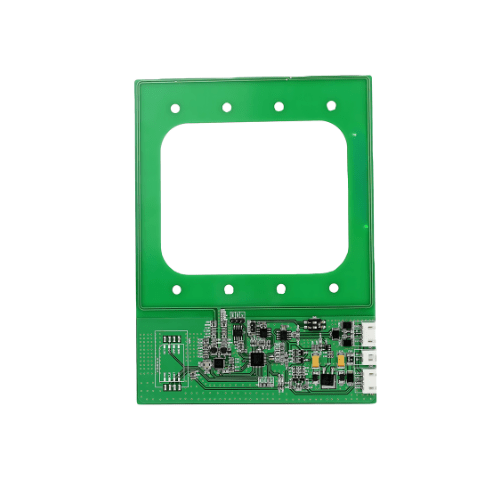

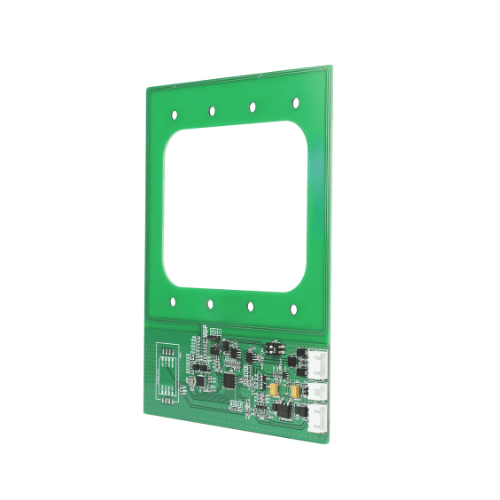

Specimen Track HF RFID Reader Module For ID Card Scanner
Specimen Track HF RFID Reader Module For ID Card Scanner - Image 2
Specimen Track HF RFID Reader Module For ID Card Scanner - Image 3
Specimen Track HF RFID Reader Module For ID Card Scanner - Image 4

Specimen Track HF RFID Reader Module For ID Card Scanner

This HF RFID Reader Module for ID Card Scanner has read distance 1.97 in to 3.94 in, working temperature 23 oF to 167 oF, and humidity 10% to 85%.

SKU: STRHMOD-124 Category:

Technical Specifications

Communication Protocol ISO 14443 A
Frequency 13.56 MHz
Communication RS 232, RS 485
Distance 1.97 in to 3.94 in (5 cm to 10 cm)
Consumption < 0.5 W
Led LED indicator and buzzer
Voltage DC 7 V to 18 V, rate 12 V
Current <100 mA
Charging Shock Current Max 120 mA
Working Humidity 10% RH to 85% RH
Working Temperature 23 oF to 167 oF (-5 oC to 75 oC)
Dimension 6.46 in x 5.24 in x 0.47 in (164 mm x 133 mm x 12 mm)
