Overview
Specimen Track industrial ethernet network switch is a robust and intelligent solution for security monitoring applications. It supports IEEE standards, offers advanced network management features, and ensures stable Ethernet transmission. Designed for harsh environments, it withstands extreme temperatures and electromagnetic interference. With redundant power supply and versatile mounting options, it provides reliable and efficient Ethernet data switching and optical transmission solutions.
Features
- Provides 5/8 Fast Ethernet ports with Auto MDI/MDI-X
- Supports 10 Mbps /100 Mbps Auto-Negotiation
- Provides compact size with DIN-rail/Wall mount, and IP 30 metal mechanism
- Supports redundant 12 V to 48 V DC power input and P-Fail relay
Technical Specifications
| Product Function Description | 2 x Gigabit optical ports to 4 x 10/100/1000 M Ethernet electrical ports, industrial rail type |

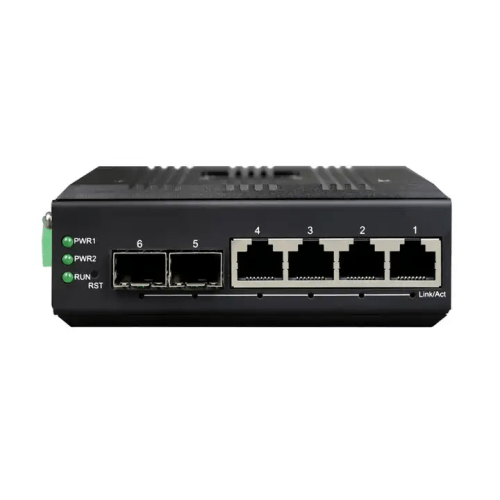

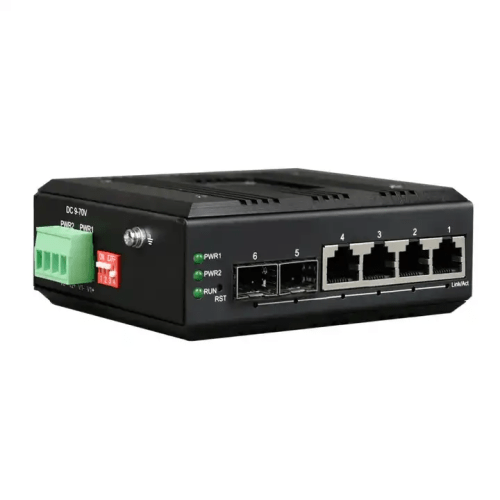

| Service Port Description | 2 Gigabit SFP optical ports, 4 Gigabit Ethernet electrical ports |

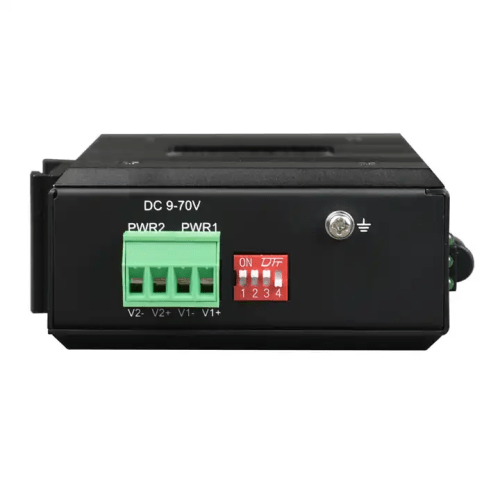

| Power Supply | DC power supply: Redundant dual power input DC 9 V to 70 V or AC 7 V to 50 V, power consumption <5 W, Overload protection: support; reverse polarity protection: support; redundant protection: support Access terminal: 4-core 0.2 in (5.08 mm) pitch plug-in terminal AC built-in power supply: AC 85 V to 265 V AC, or DC 110 V to 300 V DC wide range input, power consumption <5 W Overload protection: support; Access interface: Three-position cross type AC seat |

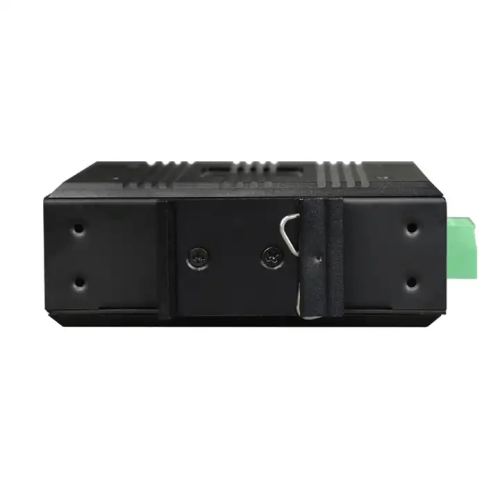

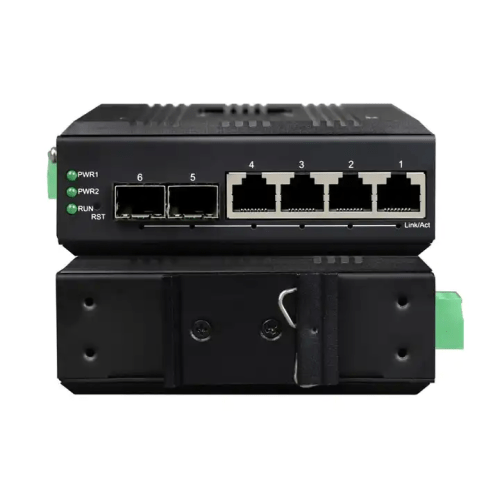

| Product Size | Shell: IP 40 protection grade, aluminium alloy material Dimensions: 19.68 in × 4.64 in × 3.38 in (118 mm x 86 mm x 39 mm) Installation method: guide rail installation, wall-mounted installation |
| Weight | 0.99 lb (450 g) |
