Overview

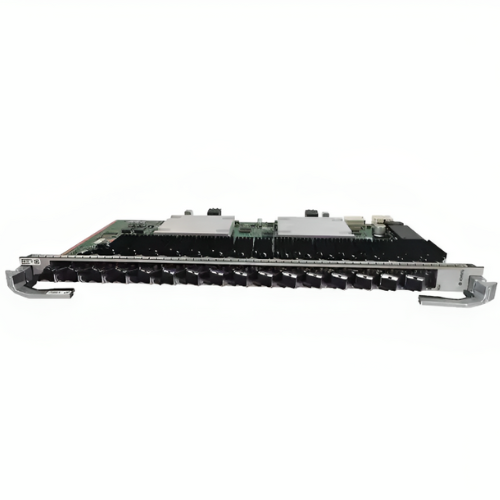

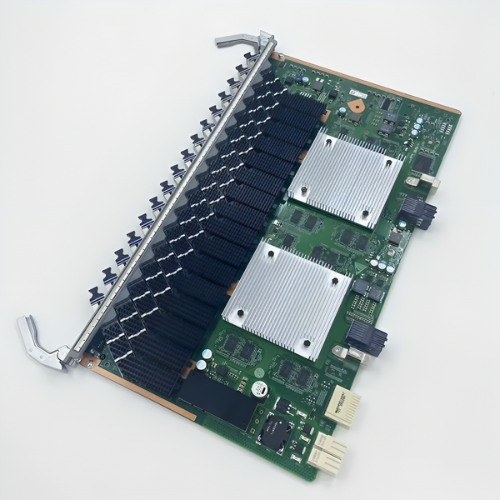

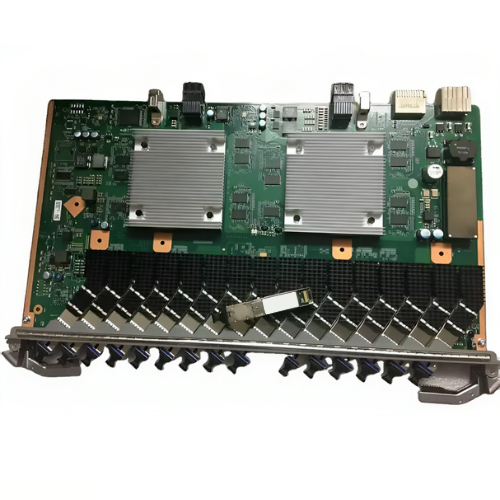

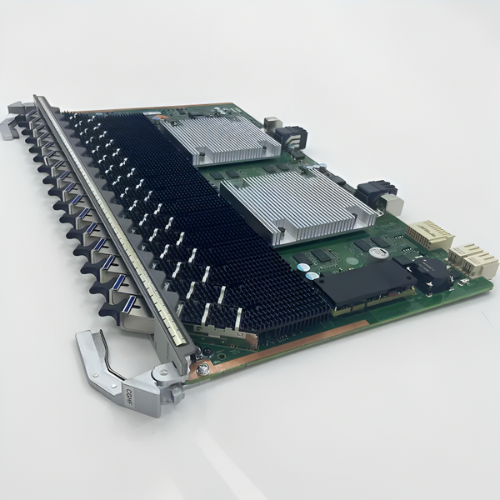

Specimen Track interface board has single board is a 16-port XG-PON&GPON Combo OLT interface board, which cooperates with ONU to realize and access service
Features
- High Density, Energy Saving, Low Power Consumption (2048 users)
- Manual PON Port Shutdown for Idle Power Savings
- 24.85 mi (40 km) Max Distance for Simplified Network Planning
- Intelligent Management Channel for Mixed XG-PON and GPON
- 9216 Jumbo Frame for Improved Transmission Efficiency
- Easy Operation and Maintenance
- Real-time ONU Detection and Isolation for Stability
- Variable Length OMCI for Efficient Upgrades
Technical Specifications
| Port quantity | 16 |
| MAX Split ratio | 1: 256 |
| Forwarding Rate | 200 Gbit/s |
| Rate model | Asymmetric Rate Model |
| Maximum Number of T-CONT | GPON:1024 |
| Maximum Number of Service Flows Supported by the Board | XG-PON:2048 |
| Maximum frame length | 16352 |
| Maximum Number of MAC | 2052 bytes |
| Maximum differential fibre distance (km) | 131072 |
| Board supporting downstream FEC | 24.85 mi (40 km) |
| Board supporting upstream FEC | Yes |
| CAR | Yes |
| D-CCAP | No |
| Temperature query and high temperature alarm | Yes |
| Automatic power shutdown in case of high temperature | Yes |
| Rogue ONT detection | Yes |
| 1588v2 | No |
| High temperature automatic concern | Yes |
| Rogue ONT Detection and Isolation Support | Yes |
| Working temperature | -40 °F to 149 °F (-40 ℃ to +65 ℃) |
| Maximum Power waste | 61 w |
| Dimensions (W x D x H) | 19.29 in x 12.79 in x 2.95 in (490 mm x 325 mm x 75 mm) |
