Features
- 56 MHz non-contact high frequency technology

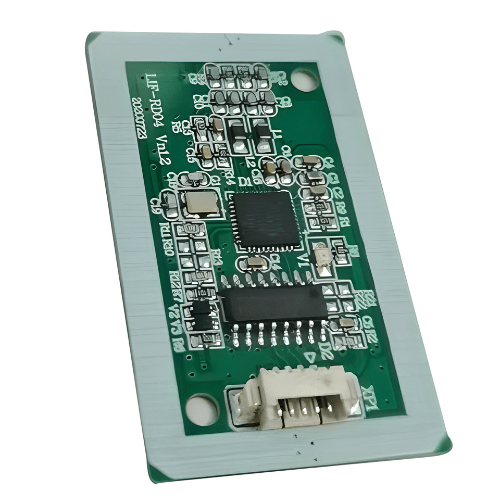

- Antenna and Circuit board are integrated
- Supports 6 different working modes
- The furthest reading and writing distance is more than 0.16 ft (5 cm)
- ISO or IEC 14443 B reader or writer
- ISO or IEC 14443 A or MIFARE Card 1 K or MIFARE 4 K card emulation mode
Technical Specifications
| Category | Contactless |
| Low Energy Consumption | The power consumption during operation is 40 mA to 100 mA |
| Power Supply | DC 5 V |
| Interface | USB |
| Frequency | 13.56 MHz |
| Air Pressure | 86 kPa to 106 kPa |
| Working Humidity | 10 % RH to 90 % RH |
| Protocol | ISO or IEC 14443 B |
| Storage Temperature | 32 °F to 122 °F (0°C to 50 °C) |
| Operating Temperature | -4 °F to 131 °F (-20 °C to 55 °C) |
| Dimensions And Size | 1.97 in × 1.18 in × 0.039 in (50 mm x 30 mm x 1 mm) |
