Overview

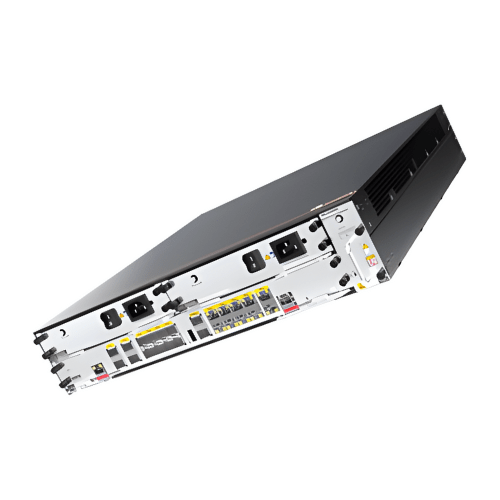

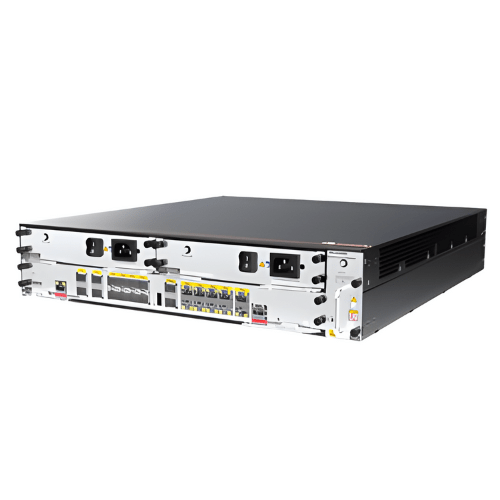

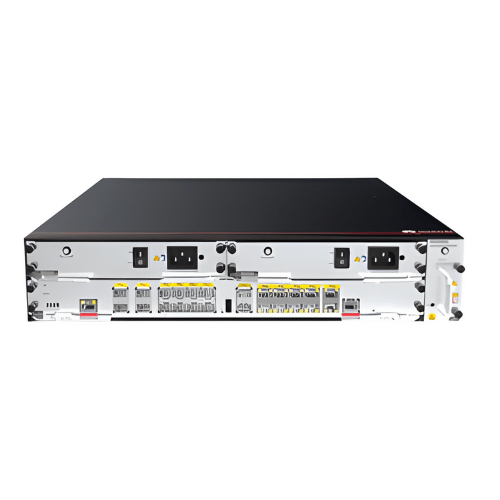

Specimen Track Net Engine Enterprise Network Router uses multi-core processors and a non-blocking switching structure, helping to deliver three times the industry average performance. It also integrates functions such as SD-WAN, cloud management, routing, switching, VPN, WLAN, and security, ensuring diversified and cloud-based services are full.
Technical Specifications
| Processor | 16-Core |
| With Modem Function | Forwarding Performance (LAN – > WAN + WAN – > LAN, NAT + ACL + QoS, IMIX) |
| IPsec Performance (IMIX) | SRU-400 H: 6 Gbps SRU-600 H: 7.5 Gbps |
| Fixed WAN Ports | SRU-400H: WAN: 14 10 GE SFP+ (compatible with GE SFP) + 10 GE RJ 45 (All WAN ports can be configured as LAN) SRU-600 H: WAN: 14 10 GE SFP + (compatible with GE SFP) + 10 GE RJ 45 (All WAN ports can be configured as LAN) |
| SIC Slots | 4 |
| WSIC Slots | 2 (default) or 4 (maximum) |
| XSIC Slots | 2 (default) or 4 (maximum) |
| USB Port | 1 USB 2.0 |
| Auxiliary Or Console Port | 1 RJ 45 console port |
| Memory | SRU-400 H: 8 GB SRU-600 H: 16 GB |
| Flash Memory | SRU-400 H: 2 GB SRU-600 H: 4 GB |
| Hot Swapping | Supported |
| Rack | IEC |
| Occupied Rack Space | 2 U |
| Rated Input Voltage Range (AC) | 100 V to 240 V |
| Rated Input Frequency (AC) | 50 Hz or 60 Hz |
| Maximum Input Voltage Range (AC) | 90 V to 264 V |
| Maximum Input Current (AC) | 5 A |
| Maximum Output Power (AC) | 350 W |
| Power Supply Redundancy | Hot-swappable dual power supplies |
| Typical Power Consumption | 80 W |
| Maximum Power Consumption | 160 W |
| Fan Module | Independent pluggable fan modules |
| Noise Level | 54.2 dB |
| Airflow | Left to right |
| Operating Temperature | 32 °F to 113 °F (0 °C to 45 °C) |
| Operating Humidity | 5 % to 95 % (non-condensing) |
| Operating Altitude | 3.11 mi (< 5000 m) |
| Storage Temperature | (-40 °C to 70 °C) -40 °F to 158 °F |
| Storage Altitude | 3.11 mi (< 5000 m) |
| Router Dimensions, With No Mounting Bracket Installed (H x W x D) |
3.47 in x 17.4 in x 18.5 in (88.1 mm x 442 mm x 470 mm) |
| Router Dimensions, With Mounting Bracket Installed (H x W x D) |
3.47 in x 19.0 in x 18.5 in (8.81 cm x 48.26 cm x 47 cm) |
| Packaging Dimensions (H x W x D) | 6.3 in x 22.44 in x 28.54 in (16 cm x 57 cm x 72.5 cm) |
