Overview
Specimen Track network analyser has handheld 10 M or 100 M or 1000 M gigabit Ethernet tester, used for the Ethernet installation, operation and maintenance services. The network analyser design in a small and portable device which provides packet capture, network monitoring, network performance testing, data generation, test leads and error test functions in an organic whole unit. It is widely used in network layer 1 or 2 or 3 BER test and test. Help maintenance people to quickly locate fault and analysis network.
Features
- Electrical and optical ports: 10 Mbps or 100 Mbps or 1000 Mbps rate
- Smart, durable, field application ready
- 5 in (12.7 cm) LCD colour touch screen, smart navigation menu
- Graphical and numerical display of test results
- Full Y.1564 test capability
- LED indicator, on-screen display, and ICON
- Large capacity memory for settings and test results
- Embedded software for easy upgrades
Technical Specifications

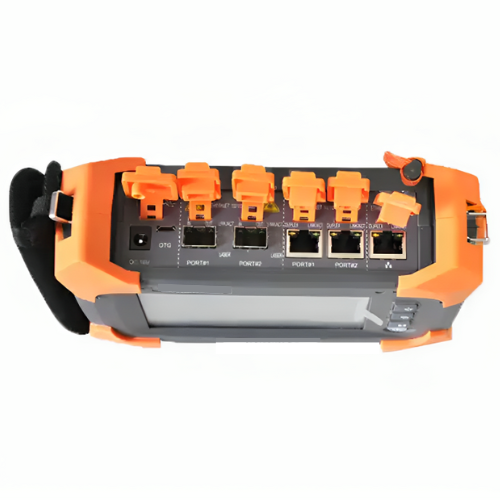

| Testing port | Dual-RJ45 port: 10 or 100 or 1000 BASE-T Dual-SFP port: 1000 BASE-SX or LX or ZX |
| Standard | IEEE 802.3, RFC 1242, RFC 2544, Y.1564 |
| Connector | RJ-45 or USB |
| LED indicator | POWER, PORT1 LINK or ACT, PORT2 LINK or ACT, ALARM |
| Display | 800×480 colour LCD touch screen |
| Battery | Lithium battery or AC adapter |
| Power Supply | 4 hours continuous operation |
| Operating temperature | 32 °F to 122 °F (0 ℃ to 50 ℃) |
| Relative humidity | 0 % to 95 % (non-condensing) |
| Weight | 1.76 lb (800 g) |
| Dimension | 9.17 in x 4.33 in x 2.51 in (233 mm × 110 mm × 64 mm) |
