Overview

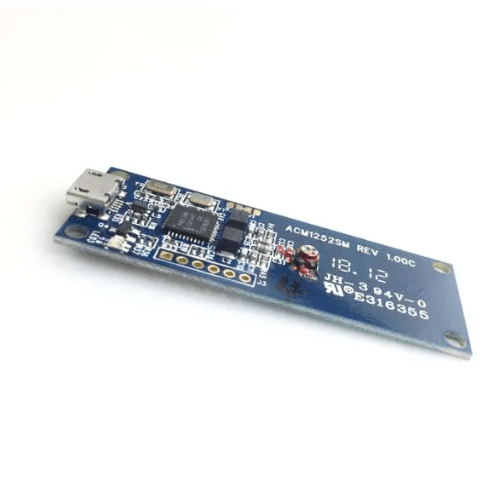

Specimen Track NFC Contactless Smart RFID Card Reader Writer Module. It is PC or SC compliant and firmware upgradeable. Its small size allows it to be integrated to compact machines. It can be used with a detachable Micro-USB cable that allows it the flexibility to be located far from the USB host interface.
Features
- Compact Size
- Protocol Support
- High-Speed Interface
- Contactless Card Access
- Anti-Collision Feature
- Firmware Upgradeable
- Detachable Cable
- Built-In Peripherals
Technical Specifications
| Frequency | 13.56 MHz |
| Connector Type | Micro USB |
| Power Source | Powered from the USB Port |
| Data Transfer Speed | USB Full Speed at 12 Mbps |
| Read and Write Speed | Up to 424 kbps |
| Card Reading Distance | 1.18 in (30 mm) |
| Protocol | USB CCID |
| Temperature | 14 °F to 158 °F (-10 °C to 70 °C) |
| Dimension | 2.04 in X 0.78 in X 0.23 in (52 mm X 20 mm X 6 mm) |
| Weight | 7.05 oz (200 g) |
