Features

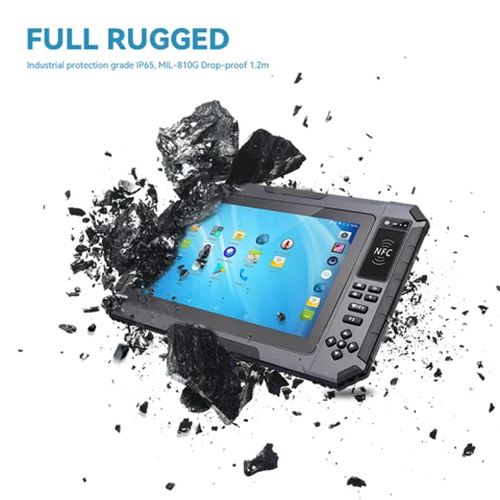

- Waterproof
- Shockproof
- Drop resistance
- Anti-Dust
- Soft, Hard, SDK available
- Temperature pressure sensor
- E20 Barcode module
- Ambient light sensor

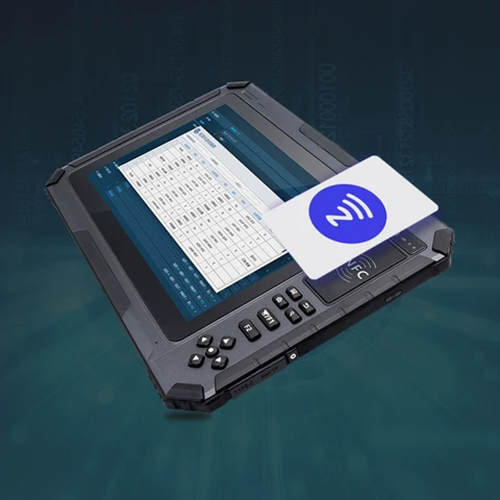

- NFC
Technical Specifications
| WI-FI | Dual-band WIFI (2.4 GHz or 5 GHz) single stream 802.11 a or b or g or n or ac |
| BT | 5.0 Low Energy (LE) |
| CPU | MTK P60 (ARM A73 2.0 GHz Octa-core) |
| GPU | Arm Mali–G72 MP3 |
| RAM | 8 G |
| Internal Memory | 128 G |
| Main Camera | 13.0 MP (AF) with flash led |
| Sub Camera | 5.0 MP |

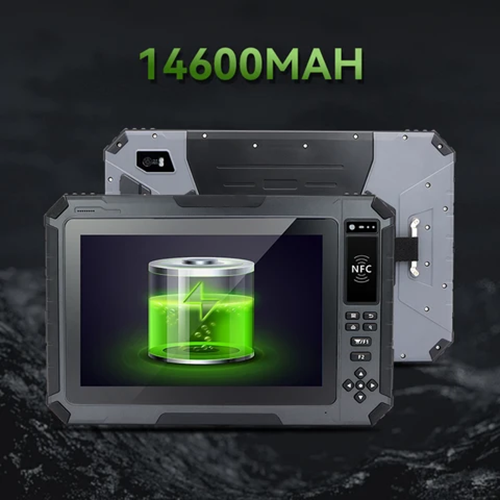

| Battery | 14600 mAh |
| Display | 10.1 in (25.65 cm) IPS or AFFS 1200 x 1920 FHD industrial 1000 nit Sunlight Readable |
| Touch Panel | Capacitive or frosted tempered film supports glove touch or spray or active capacitive pen |
| SIM Card | Nano sim card x 2 |
| TF Card | Micro SD card (T-FLASH card), max 256 GB |
| Charging Port | Type-C and 8 PIN magnetic charging |
| Data interface | USB Type-A (Host) x 2 Type-C (OTG) x 1 |
| Gravity sensor | Support |
| Motion sensor | Support |
| Direction Sensor | Support |
| Magnetic Field | Support |
| Gyro sensor | Support |
| Rotation Vector | Support |
| Light sensor | Support |
| Acceleration sensor | Support |
| Temperature pressure sensor | Optional |
| Charger | 5.0 V 2 A to 10 W |
| Navigation | GPS + Glonass + Beidou + Galileo + AGPS |
| Shake-proof | 1 Hz to 19 Hz or 0.03 in (1.0 mm); 19 Hz to 200 Hz or 1.0 g |
| Drop proof or IK | MIL-STD-810G or Method 516.6 or Procedure IV & Touch Panel IK05 |
| Waterproof | Class 5 |
| Dustproof | Class 6 |
| Reliability | MTBF >5000 hrs, MTTR <0.5 hrs |
| Operating temperature | -4 ⁰F to 131 ⁰F (-20 °C to 55 °C) |
| Storage Temperature | -40 ⁰F to 176 ⁰F (-40 °C to 80 °C) |
| RH | 5% to 95% (No condensation) |
| Operating Altitude | Max: 2.79 mi (4.5 km) |
| OS | Android 10 or 11 |
| Frequency | 13.56 MHz |
| Read-write distance | 0.78 in to 1.96 in (2 cm to 5 cm) |
| Scanning engine | E20 Barcode module |
| Size | 12.59 in x 8.97 in x 0.47 in (320 mm x 228 mm x 12 mm) |
| Weight | 2.99 lb (1.36 kg) |
