Overview

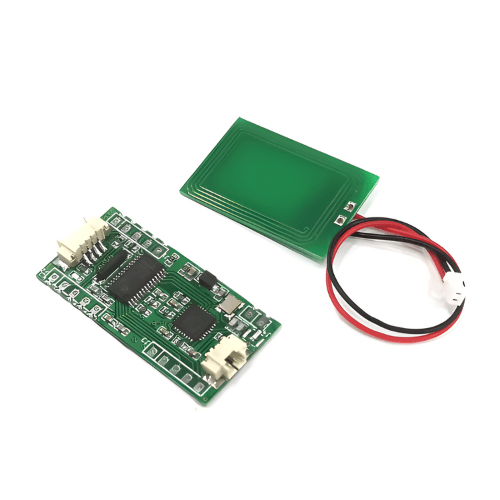

Specimen Track NFC Reader Module Android Long Range is a NFC RFID Reader Module. Read or write of this device and with standard antenna which typical operating distance is 50 mm to 60 mm. Its versatility allows a flexible and efficient application in different configurations and system devices. SDK is provided for 3rd party integration.
Features
- Frequency Compatibility
- Read and Write Chip
- Interface Options
- Wide Card Support
- Power Efficiency
- Adjustable Read Distance
- Temperature Range
Technical Specifications
| Frequency | 13.56 MHz |
| Read And Write Chip | MFRC 522 |
| Baud Rate | 9600 bits per second |
| Supporting Card Types | Milfare S 50, S 70, Ultralight and Milfare Pro |
| Interface Options | TTL and RS 232 |
| Standard, Protocol | ISO or IEC 14443-A |
| Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Dimension | 1.54 in X 0.75 in X 0.35 in (39 mm X 19 mm X 9 mm) |
| Weight | 0.70 lb (19 g) |
