Overview

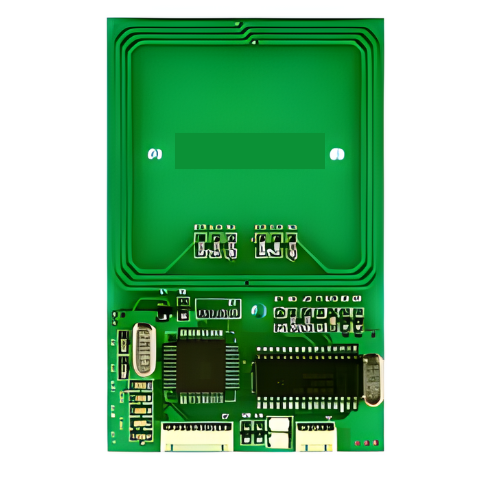

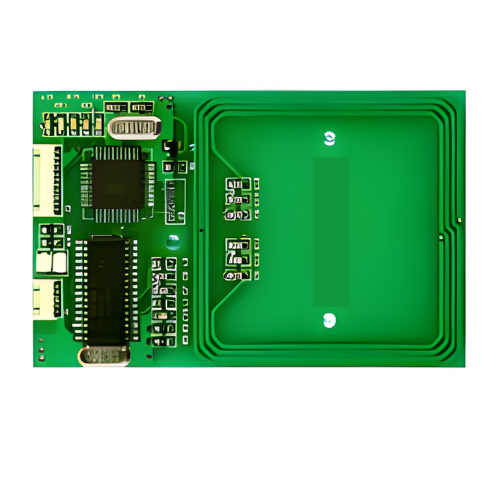

Specimen Track RFID Embedded card Reader Writer Module is developed based on NXP’s transponder IC, HF RFID Module SL015B-3 is a 13.56MHz reader writer which complies with ISO15693 and supports I.CODE SLI and Tag_it HF I. It does auto Real-time detecting tag which moves into or out of detective rang and reports through one output pin’s logic level. In addition, it integrates all necessary components and antenna into one PCB.
Technical Specifications
| Frequency | 13.56MHz |
| Protocol | ISO15693 |
| Tag Supported | I.CODE SLI, Tag_it |
| Auto Detecting | Yes |
| Integrated Antenna | Yes |
| Reader/Writer | Yes |
| Interface | RS232 |
| Supply Voltage | 4.5 to 5.5 VDC |
| Dimension | 3.39 in x 2.17 in (86 mm × 55 mm) |
