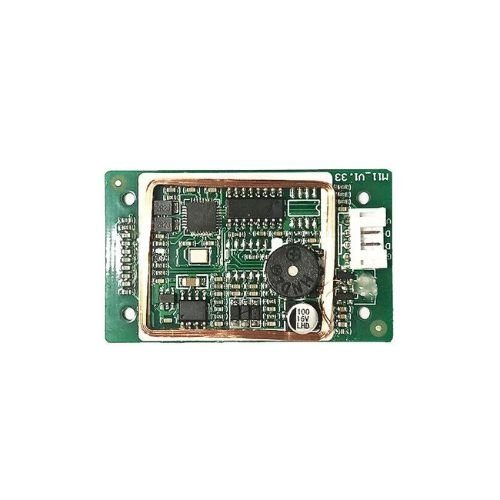

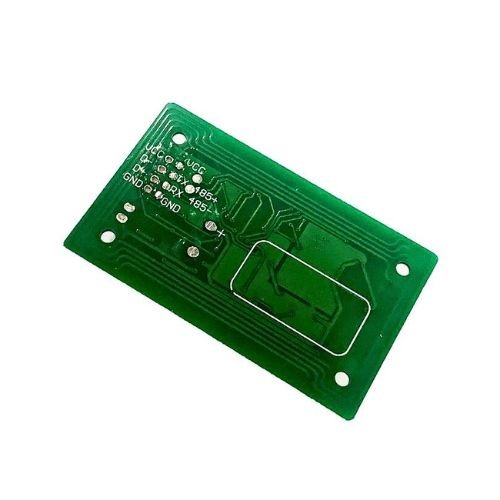

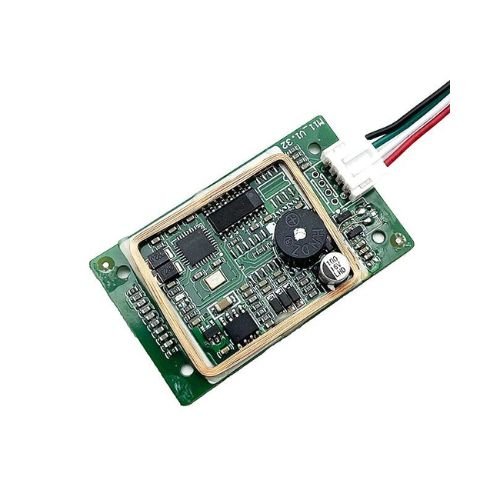

Overview
Specimen Track card reader module was developed based on the IEC or ISO 14443-A protocol and the 125 KHz dual-band standard. This module offers plug-and-play functionality and supports various interfaces including USB, TTL, RS 232 and RS 485 for seamless connectivity with a wide range of devices. The module can handle both active cards read data (reading when the card is closed) and passive card read data (sending instructions to read the card), making it versatile for various applications.
Features
- Dual-band 125 KHz + 13.56 MHz Compliance
- USB, TTL, RS 232, RS 485 Connections
- Compact, Slim Design
Technical Specifications
| Reading Time | < 1 s |
| Interface | USB, TTL, RS 232, RS 485, WIEGAND 26 or WIEGAND 34 |
| Working Frequency | 125 KHz + 13.56 MHz |
| Corresponding Platform Shape | Windows or Android or Linux |
| Default Protocol | UEM + ISO 14443-A |
| Dimensions | 1.18 in x 1.97 in (0.09 ft x 0.16 ft) |
| Operating Temperature | -4 ºF to 140 ºF (-20 ºC to 60 ºC) |
