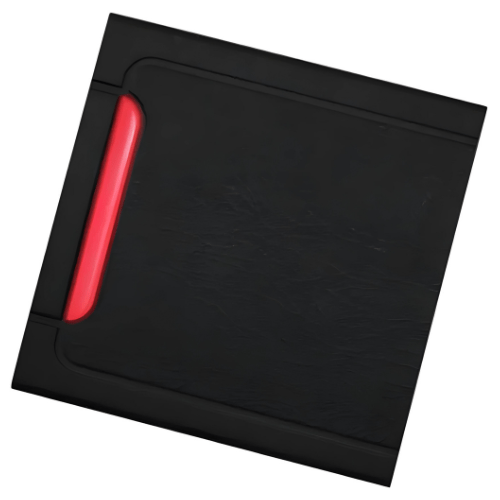

Specimen Track RS232 RFID Access Control Wiegand Reader 13.56 MHz

This RS232 RFID Access Control Wiegand Reader has a frequency of 13.56 MHz, a dimension of 115×76×22mm and working temperature of -40° C to 70° C.

SKU: STRHF-3094 Category:

Features

  • Wiegand 26bits/ Wiegand34bits, RS232, RS485 interface.
  • Less than 0.2 second Response Speed
  • Less than 0.5 seconds Proximity Time Distance: 5-10cm Proximity Range
  • Support ID (125 KHz) or MF1 (13.56 MHz Frequency) Card



Technical Specifications

Frequency 125KHZ or 13.56MHZ
Current <100mA
Voltage DC 9 to 16V
Card Type MI fare, EM
Waterproof IP65-68
Dimension 4.52756in x 2.99213in x 0.86614in (115 x 76 x 22(mm)
Humidity 10% to 90%
Temperature 70 F to 158 F (-40° C to 70° C)
Reading Range 196.8505in to 393.7008in (5 to 10m)
