Overview

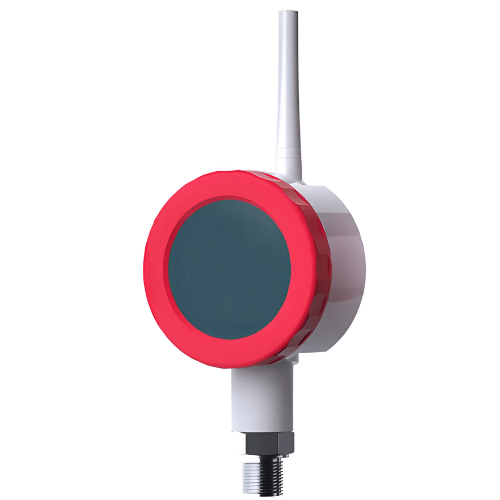

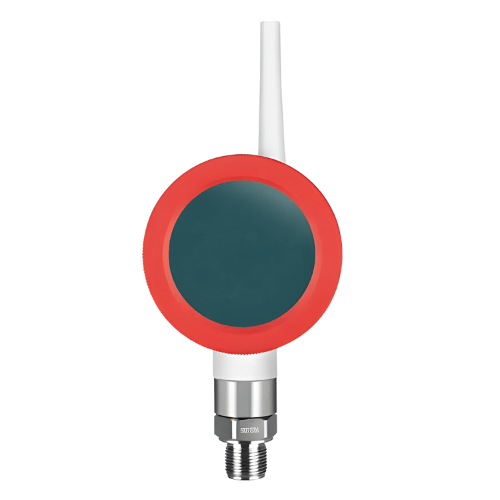

Specimen Track smart digital wireless pressure sensor has a large 2.4in TFT LCD display. This pressure sensor has protection level of IP66 and has a 330° rotational head. This pressure sensor has smart wireless pressure liquid level pressure sensor and liquid level monitoring NB-IoT, LoRA and 4G etc and mobile scan QR code view and monitoring data remotely. Removable battery and low power consumption design having large capacity battery endurance 5 years (report an hour per time). This pressure sensor is diffused with silicon chip and abnormal alarm notification via mobile app and email. The application of this product is water pressure pump, liquid level meter monitoring and terminal pressure monitoring.
Features
- Waterproof protection IP66
- 330 ̊Rotation
- Low consumption and long battery life
- Smart wireless communication
- SIM card supported
- 4 In Large TFT display
Technical Specifications
| Customized support | OEM, ODM |
| Pressure range | 0 psi to 14503.8 psi (0 bar to 1000 bar) or customized range |
| Configuration mode | Local USB, remote configuration |
| Power supply | Built-in lithium battery 3.6V ,17AH (Battery could be replaced） |
| Battery lifespan | 5 years (upload data once an hour) |
| Overload pressure | 200% F.S(1450.38psi (100 bar)), 150% F.S(3625.94psi (250bar)) |
| Communication | 4G or NB-IOT or LoRA or GPRS ect |
| Antenna | External Antenna |
| Display | 2.4 in large TFT LCD screen |
| SIM card | Built-in IoT SIM card You could inquiry LCP for service charge |
| Uploading information | Pressure, temperature, signal and battery power |
| Power consumption | Standby current less than 80uA, Data average sending current less than 150mA |
| Wake-up mode | Button, timer |
| Operation Temperature | -22 °F to 158 °F (-30 ℃ to 70 ℃) |
| Sampling interval | Once per minute |
| Accuracy | 0.5 F. S |
| Protection level | IP66 |
| Sensor material | The shell part of the sensor is stainless steel, Pressure diaphragm is 316L |
| Dimensions | 8.58 in × 3.54 in × 2.08661 in (21.8 cm × 9 cm × 5.3 cm) |
| Temperature influence | 0.27 % F.S / °F (0.015% F.S/ °C) |
