Overview

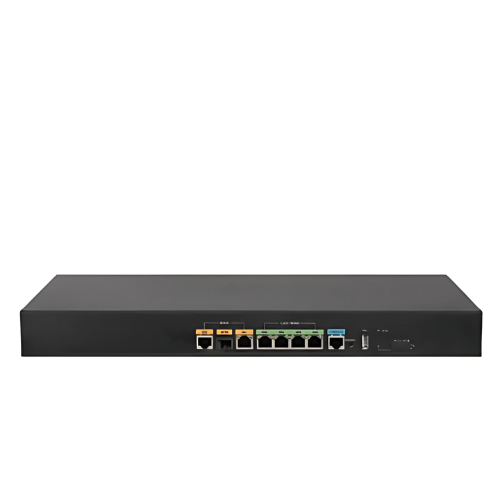

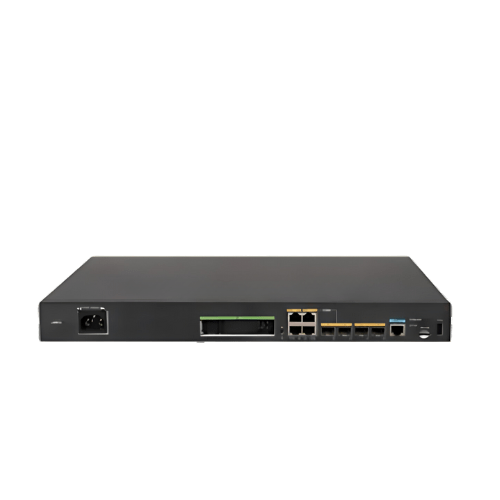

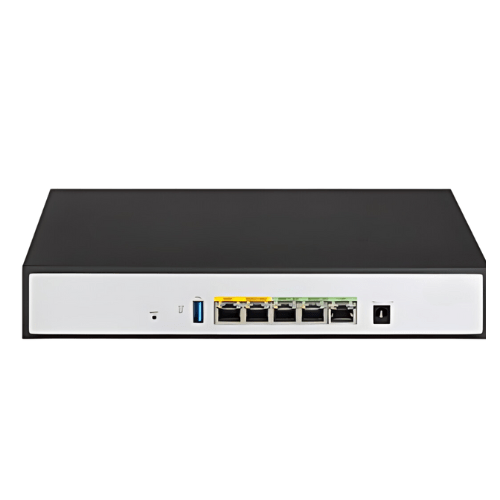

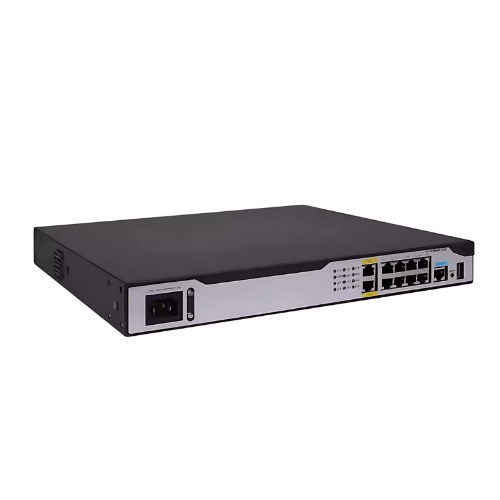

Specimen Track Soho Wireless Router WIFI is a new generation of multi-service enterprise-level gateway for small and medium-sized enterprises, mainly for small and medium-sized enterprises, governments, schools, hospitals, and other scenarios with high-speed Internet access.
Features
- Multi-WAN link load sharing
- Refined network traffic management
- Oasis Management Platform
Technical Specifications
| Belt Capacity | 300 to 600 |
| Layer 2 Protocol | Support Ethernet, Ethernet II, VLAN, port mirroring, PPP, PPPOE Client, PPPOE Server, etc. |
| IP Application | Support Ping, Trace, ICMP, DHCP Server, DHCP Relay, DHCP Client, DNS client, DNS Proxy, DDNS, NTP, SNTP, etc. |
| QOS | Support speed limit based on IP address Support green channel |
| Safety Features | Support packet filtering firewall
Support IPSec and L2TP VPN Support HTTP protocol URL filtering, website black and white list, keyword fuzzy matching Support DDoS attack prevention and statistics Support limit based on IP address and number of interface connections Support the identification and control of nearly a thousand common applications on PCs and mobile phones, such as: Support SMS, WeChat, account and other access authentication methods (need to cooperate with Oasis) |
| Built-In AC | Support centralized management of H3C Mini-series wireless AP Support AP automatic discovery Support for AP transmit power adjustment Support for AP channel adjustment Support for AP address assignment Support for AP software upgrade Support for AP configuration synchronization Support disconnection detection of AP Support AP information display Support multiple SSID configuration Support SSID binding to different VLANs Support restarting a single AP Support AP configuration template management Support wireless client status display on AP |
| Multi-WAN Load Sharing | Supports load balancing based on carrier destination address Supports load balancing based on link bandwidth Support load balancing based on user (IP address) Support policy routing to specify line forwarding Support end-to-end link detection and backup functions |
| Management And Maintenance | Support WEB humanized management page Support remote management of the Oasis management platform Support console port login, support telnet (VTY) login, support SSH login, support FTP login |
| Applicable Bandwidth | 2 Gbps |
| IPSec Encryption Performance | 2 Gbps |
| Number Of IPSec VPN Tunnels | 256 |
| NAT Sessions | 500000 |
| A Manageable Number Of MINI APs | 500 |
| WITH | 1 |
| Micro SD Card Slot | 1 |
| USB 2.0 | 1 |
| Hard Drive Bay | 1 |
| WAN Ethernet Port | 4 GE (2 Combo) +2 SFP |
| LAN Ethernet Port | 4 GE (all can be switched to WAN) |
| Maximum Power Consumption | 45 W |
| AC Power | Rated range: 100 V to 240 V 50 Hz or 60 Hz |
| Dimensions (W ×D × H, mm) | 17.32 in × 14.17 in × 1.72 in (440 mm × 360 mm × 43.6 mm) |
| Ambient Temperature | 32 °F to 113 °F (0 °C to 45 °C) |
| Ambient Relative Humidity | 5 % to 95 % (no condensation) |
