Technical Specifications
| Regulatory Compliance | RoHS, CE 0682 |
| Frequency Range | 902-928 MHz |
| Gain | 12.5 dBi (min) |
| VSWR | 1.7 : 1 (max) |
| 3 dB Beamwidth | 42 °(typ) |
| Polarization | Linear (Vertical or Horizontal) |
| Sidelobes Level | -19 dB (max) |
| Cross Polarization | -20 dB (max) |
| F/B Ratio | -24 dB |
| Input Impedance | 50 (ohm) |
| Input Power | 6 W (max) |
| Lighting Protection | DC Grounded |
| Dimensions(LxWxD) | 450 x 450 x 36 mm (max) |
| Weight | 3 (kg) (max) |
| Connector | N-type Female |
| RADOME | Plastic |
| Base Plate | Aluminum with chemical conversion coating |
| Operating Temperature | -55 °C ~ 71 °C |
| IP Rating | 67 |

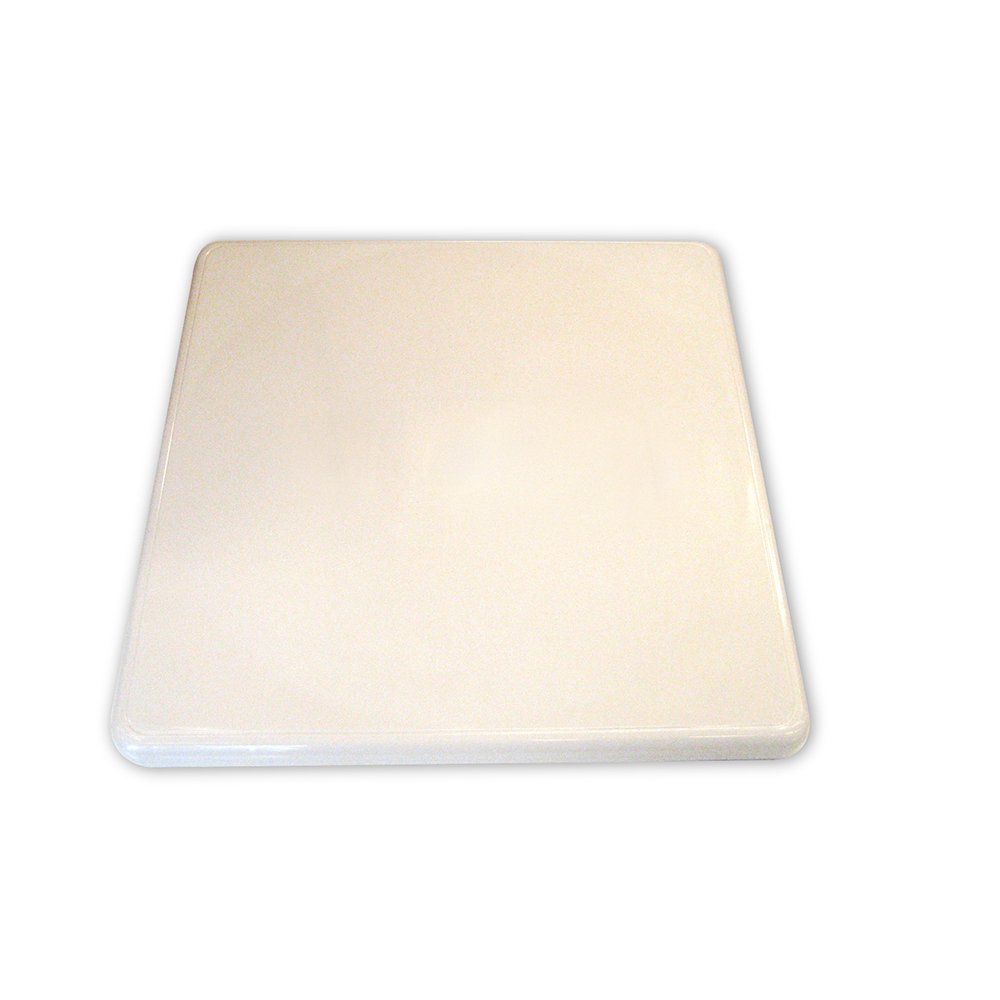

UHF 902-928 MHz 12.5 dBi Reader Antenna – Linear – Antenna Compatibility:
Any 902 ~ 928 MHz. Reader
UHF 902-928 MHz 12.5 dBi Reader Antenna – Linear – Antenna Connection:
N-type Female
UHF 902-928 MHz 12.5 dBi Reader Antenna – Linear – Transponder Compatibility:
EPC G2, ISO18000 6B
UHF 902-928 MHz 12.5 dBi Reader Antenna – Linear – Additional Features:
No Cable supplied. 6 Meter cables available as stock item.Other lengths are custom built.
