Overview

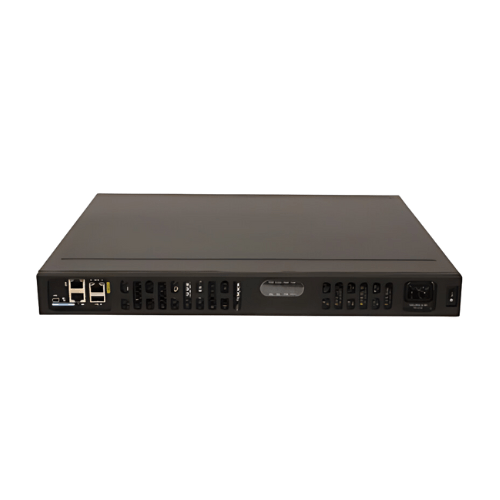

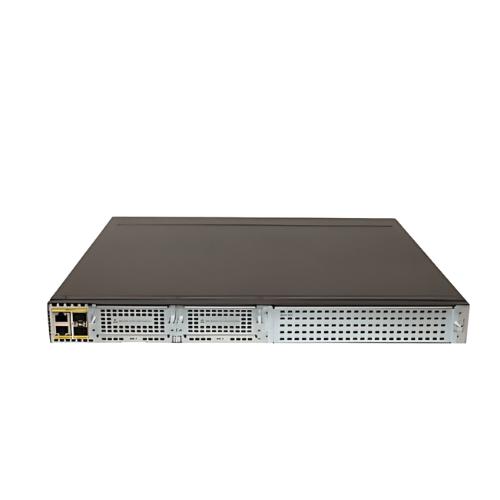

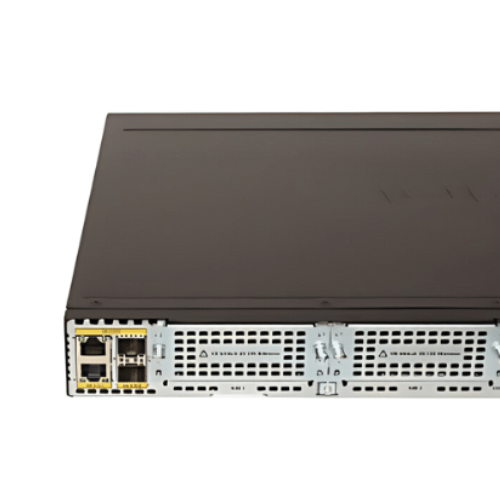

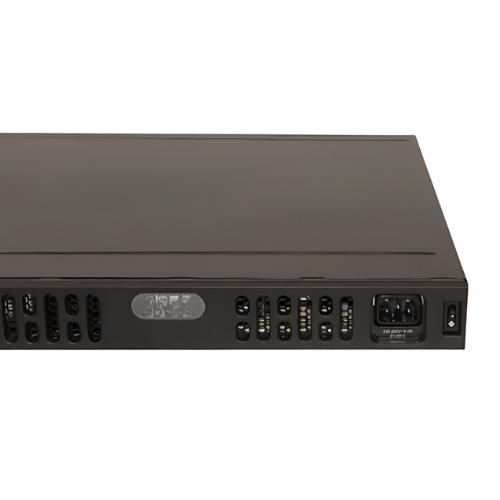

Specimen Track VPN Wired Power WIFI Router delivers 100 Mbps to 300 Mbps aggregate throughput and offers one Enhanced service-module (SM-X) slot, which supports for both single- and double-wide service modules and provides flexibility in deployment options.
Technical Specifications
| Aggregate Throughput | 100 Mbps to 300 Mbps |
| Total Onboard WAN Or LAN 10 Or 100 Or 1000 Ports | 3 |
| RJ-45-Based Ports | 2 |
| SFP-Based Ports | 2 |
| Enhanced Service-Module Slots | 1 |
| Doublewide Service-Module Slots | 0 |
| NIM Slots | 2 |
| OIR (All I Or O Modules) | Yes |
| Onboard ISC Slot | 1 |
| Default Memory Double-Data-Rate 3 (DDR3) Error-Correction-Code (ECC) DRAM (Combined Control Or Services Or Data Planes) | 4 GB |
| Maximum Memory DDR3 ECC DRAM (Combined Control Or Services Or Data Planes) | 16 GB |
| Default Memory DDR 3 ECC DRAM (Data Plane) | NA |
| Maximum Memory DDR 3 ECC DRAM (Data Plane) | NA |
| Default Memory DDR 3 ECC DRAM (Control Or Services Plane) | NA |
| Maximum Memory DDR 3 ECC DRAM (Control Or Services Plane) | NA |
| Default Flash Memory | 4 GB |
| Maximum Flash Memory | 16 GB |
| External USB 2.0 Slots (Type A) | 1 |
| USB Console Port -Type B Mini (Up To 115.2 kbps) | 1 |
| Serial Console Port – RJ 45 (Up #To 115.2 kbps) | 1 |
| Serial Auxiliary Port – RJ 45 (Up To 115.2 kbps) | 1 |
| Power-Supply Options | Internal: AC and PoE |
| Redundant Power Supply | N or A |
| AC Input Voltage | 100 to 240 V AC S auto ranging |
| AC Input Frequency | 47 Hz to 63 Hz |
| AC Input Current Range, AC Power Supply (Maximum) | 3 A to 1.3 A |
| AC Input Surge Current | 60 A peak and less than 5 Arms per half-cycle |
| Typical Power (No Modules) (Watts) | 42 |
| Maximum Power With AC Power Supply (Watts) | 250 |
| Maximum Power With PoE Power Supply (Platform Only) (Watts) | 530 |
| Maximum Endpoint PoE Power Available From PoE Power Supply (Watts) | 250 |
