Overview

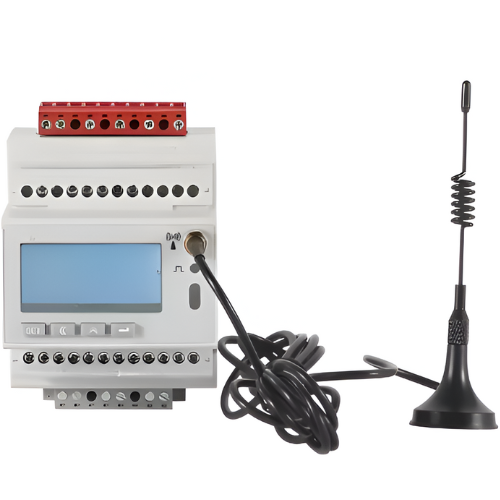

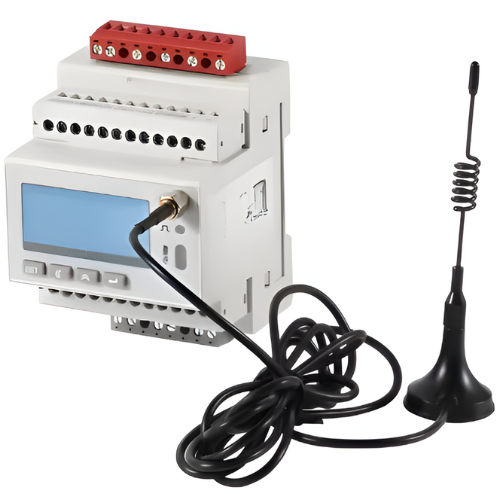

Specimen Track three phase LoRaWAN multi-function energy meter designed for modern IoT solutions. This smart energy meter integrates seamlessly into energy monitoring systems, offering a reliable solution for tracking and managing power consumption in real-time. Equipped with LoRaWAN technology, it provides efficient wireless communication over long distances, making it ideal for applications in industrial, commercial, and residential environments.
Features
- Wireless Comms 4G LTE& GRPS
- WIFI (24850H2] NB-INT
- LoRa radio power quality
- Total harmonic 2nd-S1at harmonic
- Voltage unbalance current unbalance expanded function 4-channel Ol -Z-channel DD
Technical Specifications
| Nominal Voltage | 3 x 220 V / 380 V，3 x 380V，3 x 57.7/100V，3 x 100V |
| Consumption | ＜10VA or 2W (A phase), ＜0.5VA（B phase, C phase） |
| Frequency | 50 Hz to 60 Hz |
| Maximum Current | 6 A |
| Starting Current | 0.002 A |
| Consumption | ＜ 2 VA |
| Accuracy | Class 0.5S |
| Communication | Infrared RS485（Modbus-RTU） 868 MHz / 923 MHz / 433 MHz Lora / Lorawan 2G, 4G GPRS communication NB-IOT communication |
| Width | 80 ± 20 ms |
| Constant | 6400 imp / kWh |
| Humidity | ≤ 95 % RH (no condensation） |
| Altitude | ＜ 2000 m |
| Temperature Accuracy | 35.6 °F (± 2 ℃) |
| Dimensions | 2.76 in x 2.76 in x 3.54 in (7 cm x 7 cm x 9 cm) |
| Operating T | -13 °F to 131 °F (-25 ℃ to 55 ℃) |
| Storing | -40 °F to 158 °F (-40 ℃ to 70 ℃) |
