Overview

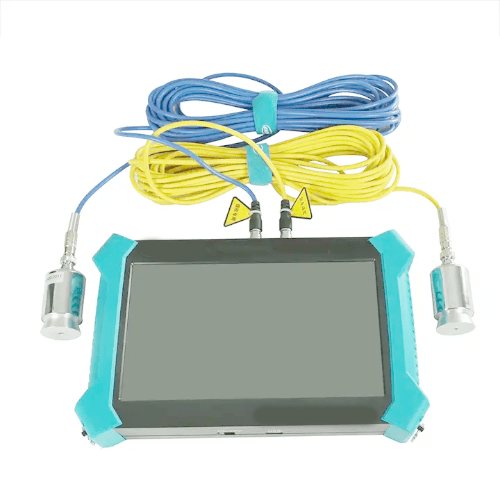

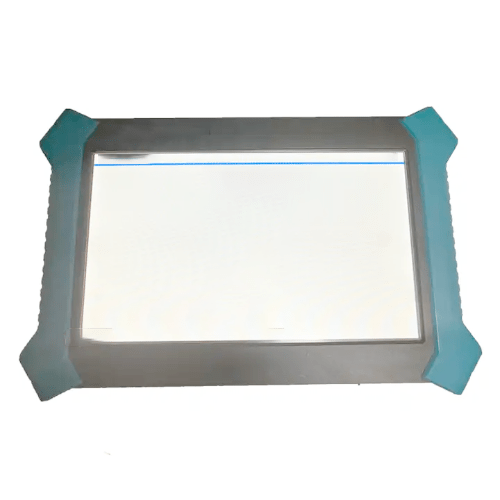

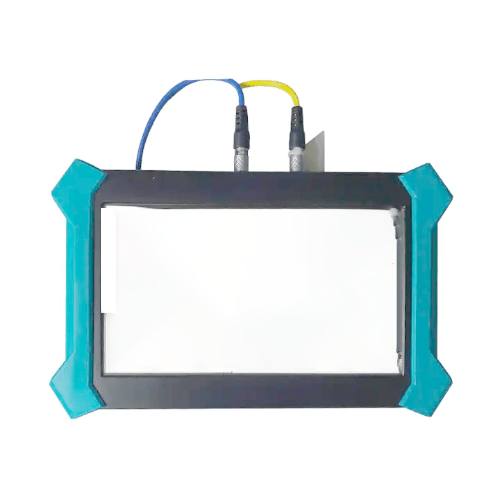

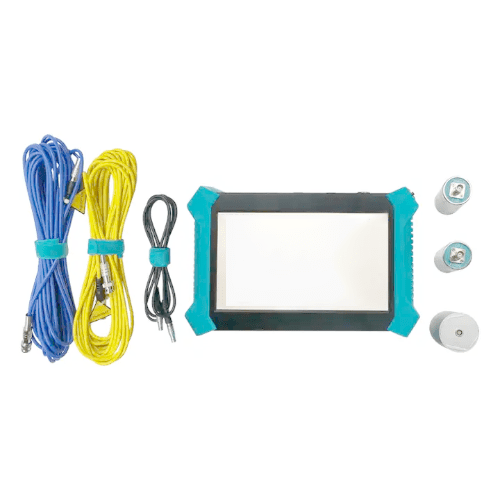

U-Disk Tester for Concrete Strength & Defect Detection with 10.1 in Touchscreen supports non-metallic ultrasonic structural concrete compressive strength, crack depth, crack width and defect detection, ultrasonic transmission method for detecting pile and continuous wall integrity. It integrates five functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defect measurement, crack sounding and width measurement, geological exploration, rock integrity, weathering evaluation test, mechanical properties of non-metallic materials such as rock mass and concrete.
Features
- Five functions of measuring pile, strength, defect, sounding depth and width measuring
- Semi-transparent, high-brightness, TFT color LCD screen
- Full touch screen operation, simple and convenient, stable and reliable
- Large memory capacity and working time over 10 hrs
- It can relate to the probe of digital display rebound instrument to measure the strength of ultrasonic rebound
- U-disk transfers data and supports software upgrading through U-disk
- Special analysis software.
Technical Specifications
| Display | 10.1 in (3.93 cm), high brightness, TFT color LCD |
| Storage Mode | Built-in Electronic Hard Disk (8 GB) + Large Capacity U Disk |
| Channel Number | 1 transmit + 1 receive |
| Sampling Period | 0.05 μs to 409.6 μs Multistage Options |
| Acoustic Time Accuracy | 0.05 μs |
| Acoustic Time Range | + 1677700 μs |
| Dynamic Range | 146 dB |
| Bandwidth | 1 kHz to 500 kHz |
| Emission Voltage | 65 V, 250 V, 500 V and 1000 V gears adjustable |
| Communication | UBS, Bluetooth, WIFI |
| Working Hrs | More than 8 hrs |
| Power Supply Mode | Built-in lithium battery External 220 V to 16 V AC or CD |
| Working Environment | Temperature: 14° F to 104° F (-10° C to 40° C) Humidity (RH) <90% |
| Host Size | 11.81 in x 7.87 in x 2.16 in (300 mm x 200 mm x 55 mm) |
