Overview

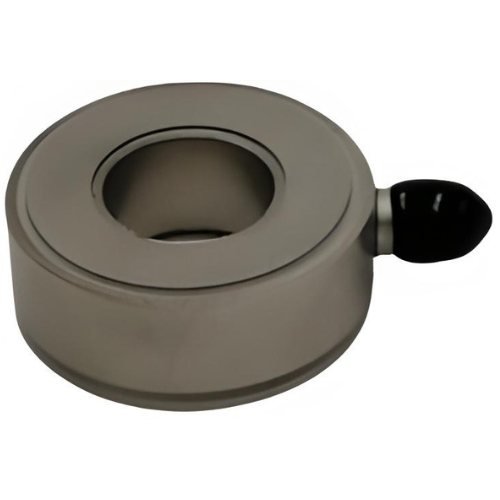

Specimen Track unidirectional piezoelectric force sensor utilizes the piezoelectric effect of piezoelectric materials and adopting quartz as the sensitive element, the sensor converts the measured force into an electrical signal, sensing quasi-static and dynamic forces. Rugged structure. Long service life, wide available frequency range, wide dynamic range, ideal for dynamic force measurement.
Features
- Rugged and durable stainless-steel housing.
- Compact size for versatile installation.
- High sensitivity with precise measurement.
- Wide operating temperature range.
- Long service life for extended use.
- Easy installation with M5 electrical connector.
Technical Specifications
| Range | 35 KN |
| Sensitivity | 4 pC / N |
| Self-Resonant Frequency | ≥ 60 KHz |
| Non-Linearity | ≤ 1 % |
| Housing Material | High-strength stainless steel |
| Sealing | laser welding |
| Electrical Connector | M5 |
| Connection Cable | D01 |
| Temperature Range | -65.2 °F to 249.8 °F (-54 to 121 ℃) |
| Size | 0.937 x 0.394 x 0.394 in (2.38 cm x 1.0 cm x 1.0 cm) |
| Weight | 0.59 oz (17 g) |
