Overview

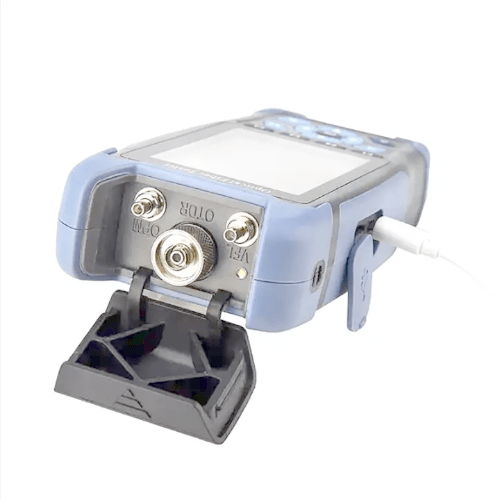

Versatile Fiber Optic Tester with 600 GB Storage supports FTTx and access network construction and maintenance. This product tests fiber breakpoints, length, loss, and input light automatically detect. It provides compact 3.5 in (8.89 cm) colorful LCD screens, new plastic shell designs, shock-proof and drop-proof features. This product combines 8 functions with highly integrated OTDR, Event maps, Stable Light sources, optical power meters, Visual fault locators, cable sequence proofreading, cable length measurements, and lighting functions. It detects breakpoints, universal connectors, has 600 GB internal storage, TF card, USB data storage, and built-in 4000 mAh lithium batteries with USB charging capabilities. It provides long-term fieldwork.
Technical Specifications
| Wavelength | 1310 nm or 1550 nm ±20 nm |
| Fiber Type | G. 652 SM Fiber |
| Dynamic Range | 24 dB or 22 dB |
| Test Range | 16.40 ft to 37.28 mi (5 m to 60 km) |
| Event Blind Zone | 9.84 ft (3 m) |
| ATT Blind Zone | 26.24 ft (8 m) |
| Pulse Width | 3 ns to 10 us |
| Ranging Accuracy | ± (3.28 ft (1 m) + Sampling Interval + 0.005% x Test Distance) |
| Loss Accuracy | ±0.2 dB |
| Sampling Points | 16 k to 128 k |
| Sampling Resolution | 0.16 ft to 26.24 ft (0.05 m to 8 m) |
| Reflection Accuracy | ±3 dB |
| Data Storage | Internal: ≥600, External: TF Card |
| Wave Range | 800 nm to 1700 nm |
| Test Range | -50 dBm to +26 dBm |
| Uncertainty | ±5% |
| Calibration Wavelength | 850 nm or 980 nm or 1300 nm or 1310 nm or 1490 nm or 1550 nm or 1625 nm or 1650 nm |
| Output Wavelength | 1550 nm ±20 nm, 1310 nm or 1550 nm ±20 nm |
| Output Power | ≥-5 dBm |
| Modulation Frequency | 270 Hz or 330 Hz or 1 k or 2 kHz |
| Stability | CW, ±0.5 dB or 15 min |
| Work Wavelength | 650 nm ±20 nm |
| Output Power | ≥10 mW |
| Mode | CW or 1 Hz or 2 Hz |
| Test Range | 0.62 mi (1000 m) |
| Display | 3.5 in (8.89 cm) Color LCD |
| Power Supply | Polymer Li-battery 3.7 V, 4000 mAh, Power Adapter: 5 V DC, 2 A |
| Battery Life | Standby >20 hrs, Measuring Time >12 hrs |
| Operating Temperature | 14° F to 122° F (-10° C to +50° C) |
| Storage Temperature | -40° F to 158° F (-40° C to +70° C) |
| Relative Humidity | 0% to 95% non-condensing |
| Dimension | 6.81 in x 3.22 in x 1.45 in (173 mm x 82 mm x 37 mm) |
| Weight | 0.77 lb (350 g) |
