Overview

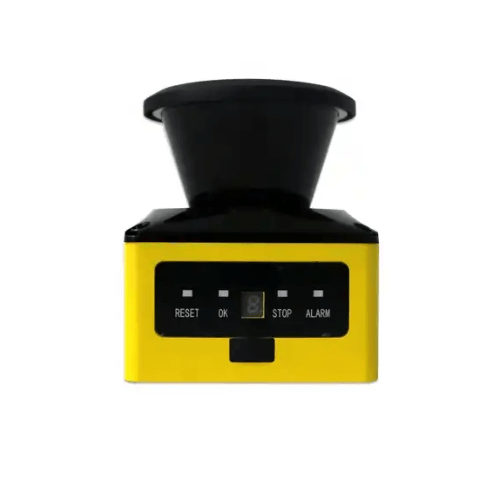

Specimen Track industrial LiDAR sensor scanner can achieve the two dimensional zone detection and profile scanning with a range of 270° and a radius of 3 m, featuring small size, high flexibility, good capability and reliability and high cost performance, it is the ideal choice for the obstacle avoidance and navigation of mobile robot. The industrial LiDAR sensor scanner, one power cable, one net connection cable, one configuration cable and configuration software. Users can connect LSPD mini with computer by the configuration cable and configure the protection zone and other related parameters through the configuration software.
Features
- Smallest laser radar with safety certification
- Protection and detection zones customizable
- Meets safety requirements and is Class 1
- Window dirty detection function included
Technical Specifications
| Power supply | DC 9 V DC 30 V |
| Power consumption | <5 W (No load on the output terminal) |
| Output type | BP Obstacle avoidance type, PNP output DE Measurement type, Ethernet output PE Obstacle avoidance type + Measurement type, PNP output + Ethernet output |
| Response time | Obstacle avoidance type 40 msr adjustable Measurement type 0.33° Angle resolution, 36 msr 0.25° or 0.5° Angle resolution, 50 ms and 25 ms |
| Power on time | Typical value 10 s |
| Operating temperature | 14 °F to 131 °F (-10 °C to 55 °C) |
| Storage temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
| Environment humidity | Operating 35% RH to 85% RH Storage 35% RH to 95% RH |
| Light interference resistance | 15000 Lux |
| Vibration resistance | Frequency 10 Hz to 55 Hz, amplitude 0.35 ± 0.05 mm, number of scans three axes, 20 times per axis |
| Shock resistance | Acceleration 10 g, pulse duration 16 ms, number of collisions three axes, 1000 ± 10 times per axis |
| Executive standards | 2006 42 EC (Mechanical safety command), 2004 108 EC (EMC command), IEC 61496 1, IEC 61496 3, ISO 13849 1 GB T 19436.1, GB 19436.3, GB 4208 (IP 65), EN 60825 1 (Class 1 laser product) |
| Zone group switching | Four groups of external input signal (Z 1, Z 2, Z 3, Z 4) can realize the switching among 16 zone groups |
| IP code | IP 65 |
| Dimensions | 3.15 in × 3.15 in × 3.74 in (80 mm × 80 mm × 95 mm) |
