Features
- Special Features Waterproof, Mini Tag
- Communication Interface RFID, NFC
- Frequency 125KHz

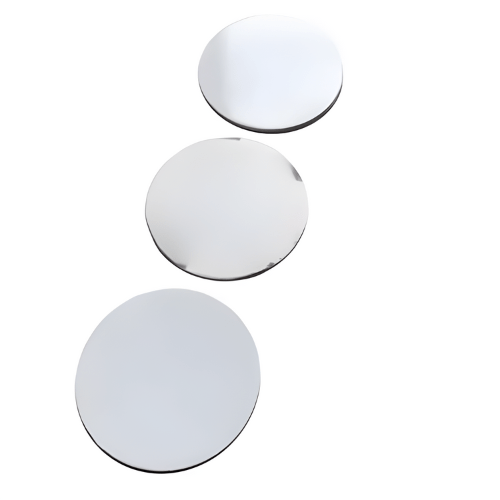

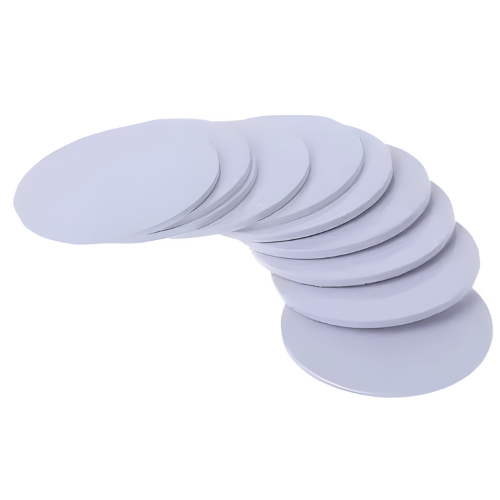

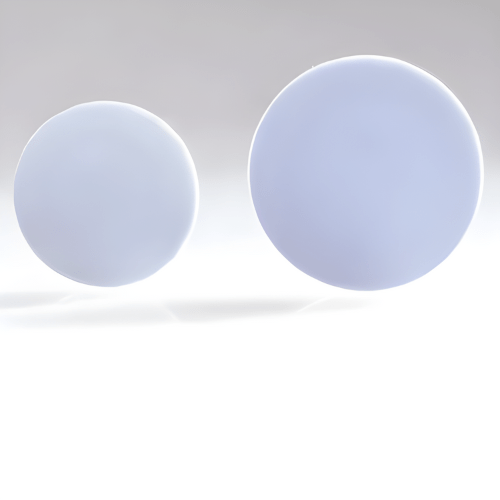

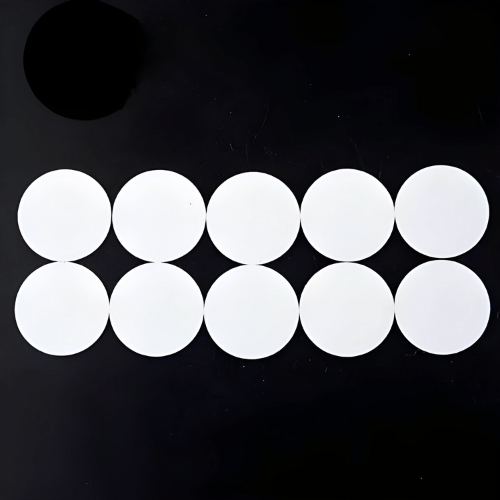

- Type LF RFID Coin Tag
- Material PVC
- Read Distance 1-5cm
- Dimension Dia25/28/30mm or customized
- Chip TK4100/EM4200/EM4305 etc.
- Memory 64bit/64bit/256bit etc.
- Protocol 125KHz/134.2KHz
- Reading Times 10000 times
Technical Specifications
| Type & Material | PVC |
| Frequency | 125KHz or 134.2KHz |
| Application | Application surface: Plastic, glass, wooden, paper, wall, etc. Metal surface: Support! (Working on metal surface needs to add special material, extra.) Install way: Paste on with adhesive, or screw on. Tips: The shell is made by excellent anti-corrosion and high temperature resistant material. RF chip is sealed in, filling the epoxy resin, and use ultrasonic to weld. |
| Colour | Black, yellow, red, green, blue, pink or customized. |
| Printing | Printing Method: Offset, Silkscreen, Silver or Gold Glittering Effect, UV Printing Number Printing: Thermal Transfer Number, Ink Jet Number, Laser Number, Embossing Number |
| Size | Diameter 0.590551 in (15 mm), 0.708661 in (18 mm), 0.787402 in (20 mm), 0.984252 in (25 mm), 1.181103 in (30 mm), 1.377953 in (35 mm) or customized. |
