Overview

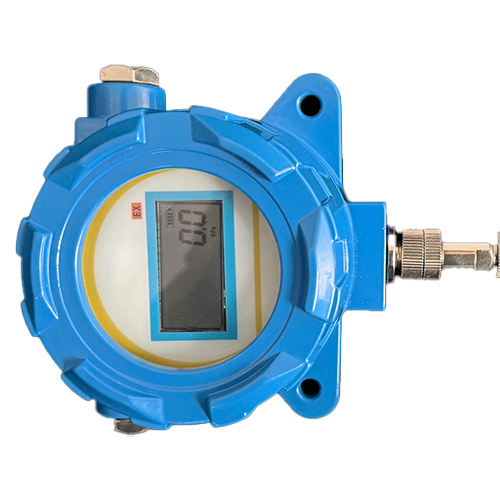

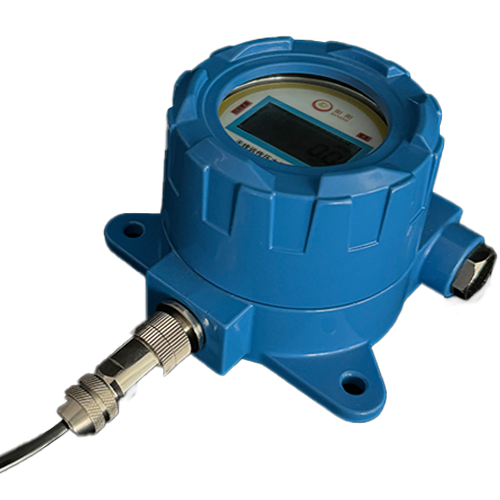

The Specimen Track wireless pressure transmitter with dual positioning utilizes MEMS microelectromechanical technology, offering compact size, low power consumption, and high accuracy. It collects, records, and uploads real-time pressure data from pipelines, making it ideal for remote pressure monitoring in urban gas, water supply, heating pipelines, oilfield wells, and more.
Technical Specifications
| Customized Support | OEM, ODM |
| Detection Object | Pipeline internal pressure |
| Detection Range | 0 KPa to 600 KPa or 0 MPa to 6 MPa (optional) |
| Accuracy | Class 0.25 |
| Display Method | LCD screen display (optional) |
| Power Supply | Built-in lithium battery or external solar power supply |
| Operation Mode | Real-time monitoring, alarm uploading |
| Data Transmission | NB-IoT, 4G, or 5G network transmission |
| Data Storage | Local (up to 1 million records) and cloud dual storage |
| Positioning Function | Dual positioning with Beidou and GPS |
| Explosion-proof Signs | Ex ib IIC T4 Gb |
| Protection Level | IP68 |
| Battery Life | ≥3 years |
| Operating Humidity | 0% to 95% RH |
| Operating Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
