Features
- Latest generation WiFi7(802.11be), compatible with IEEE 802.11a/b/g/n/ac/ax/be
- Supporting OFDMA and MU-MIMO technology, no queuing for concurrent network use
- 512+ concurrent wireless users
- Supporting router/AP/repeater modes;
- One USB3.0 interface (Note: When 5G NR is enabled, the USB interface can only support USB2.0)
- SA/NSA dual mode 5G NR, wired broadband and cellular broadband are mutual backups
- 10G SFP+ uplink port
- 5G LAN ports and supporting 802.3af/at PoE output
- Customization options (Wi-Fi rate, Frequency Band, Flash/RAM, USB/RS485 interfaces)
Technical Specifications
| Network | Wireless Lan, Wired LAN, POE, 5G NR, Fiber, Wi-Fi |
| Chipset | IPQ5322 |
| RAM | 1GB DDR4 |
| FLASH | 256MB (up to 1GB customizable) SPI NAND, eMMC compatible
4MB (up to 32MB customizable) SPI NOR |
| Standard | IEEE 802.11a or b or g or n or ac or ax or be |
| Frequency Bands | 2.4GHz to 2.483GHz
5.15GHz to 5.25GHz, 5.25GHz to 5.35GHz, 5.725GHz to 5.850GHz (4.9 to 7.125GHz customizable) |
| Rate | 2.4GHz: 688Mbps, 5GHz: 5765Mbps |
| Bandwidth | 320 or 160 or 80 or 40 or 20 MHz |
| Tx power | 24dBm |
| Antenna | 6 × External high gain antennas |

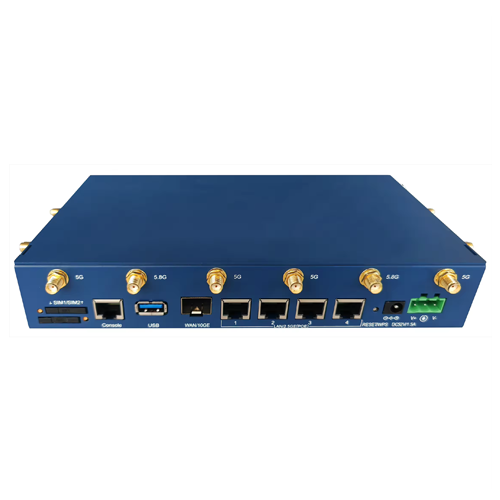

| Network interface | 1×10G SFP WAN, 4×2.5Gbps LAN (PoE out) |
| PoE | LAN ports support 802.3af or at PoE out |
| Power consumption | 24W |
| Indicators | Power, Eth, 5G, Wi-Fi, USB |
| Button/Jack | Reset or WPS in one, RJ45 Console, USB3.0(USB2.0 when 5G NR enabled) |
| SIM slot | 2 × SIM slot |
| Power consumption | 24W |
| Operating humidity | 5 %RH to 90 %RH (non-condensation) |
| Bandwidth | 320 MHz or 160 MHz or 80 MHz or 40 MHz or 20 MHz |
| Tx power | 24dBm |
| Antenna | 6 × External high gain antennas |
| Operating Temperature | 0 ⁰F to 104 ⁰F (0 ⁰C to 40 ⁰C) |
| Storage Temperature | -40 ⁰F to 185 ⁰F (-40 ⁰C to 85 ⁰C) |
| Dimension | 8.661 in x 5.118 in x 1.496 in (22.0 cm x 13.0 cm x 3.8 cm) |
