Technical Specification
| Main Unit size | 1.3 in x 6.1 in x 2.32 in (350 mm x 155 mm x 59mm) |
| Display | 5.0 in wide angle HD LCD Screen |
| Storage | Standard32G; Max 128G |
| WIFI Transmission | WIFI Function, available for adding audio recording function on the lens tip |
| Video Output | HDMI Port |
| Image Control | Frozen, Zooming, photographing, flipping, video playback, analogy ruler functions |
| System Languages | Chinese, English etc (7 languages) |
| Image/Video Format | JPG or MP4 |
| Bending Angle | ≤ 160 ° |
| Pixel | ≥ 1 MP or 450,000 |
| Diameter | Φ 0.23 in (6.0 mm) or Φ 0.15 in (3.9 mm) |
| Tube Length | Standard 4.92 ft (1.5 m), 1.5 to 5 mts is available |

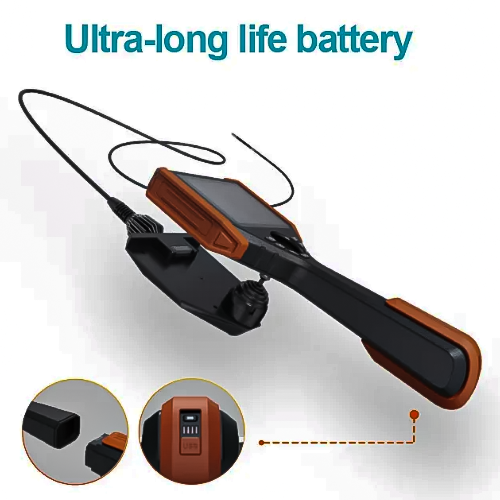

| Battery Working | ≥ 4 hrs |
| DOF | IR & White Dual Lights 50 to infinity |
| FOV | 75 ° or 84 ° |
| Infrared Wavelength | No exposure 940 nm or Infrared exposure 850 nm |
| Articulation | 360 ° Degree |
| System Working Temperature | 14 ° F to 122 ° F (-10 ℃ to 50 ℃), no need preheating under low temperature |
| Probe Working Temperature | -4 °F to 158 °F ( -20 ℃ to 70 ℃) |
| Store Temperature | -4 °F to 158 °F (-20 ℃ to 70 ℃) |
| Relative Humidity | Max 90 %, no condensation |
| IP level | Insertion Tube IP67 |
