Ceiling Enterprise with High-Speed Connectivity – Specimen Track

Overview

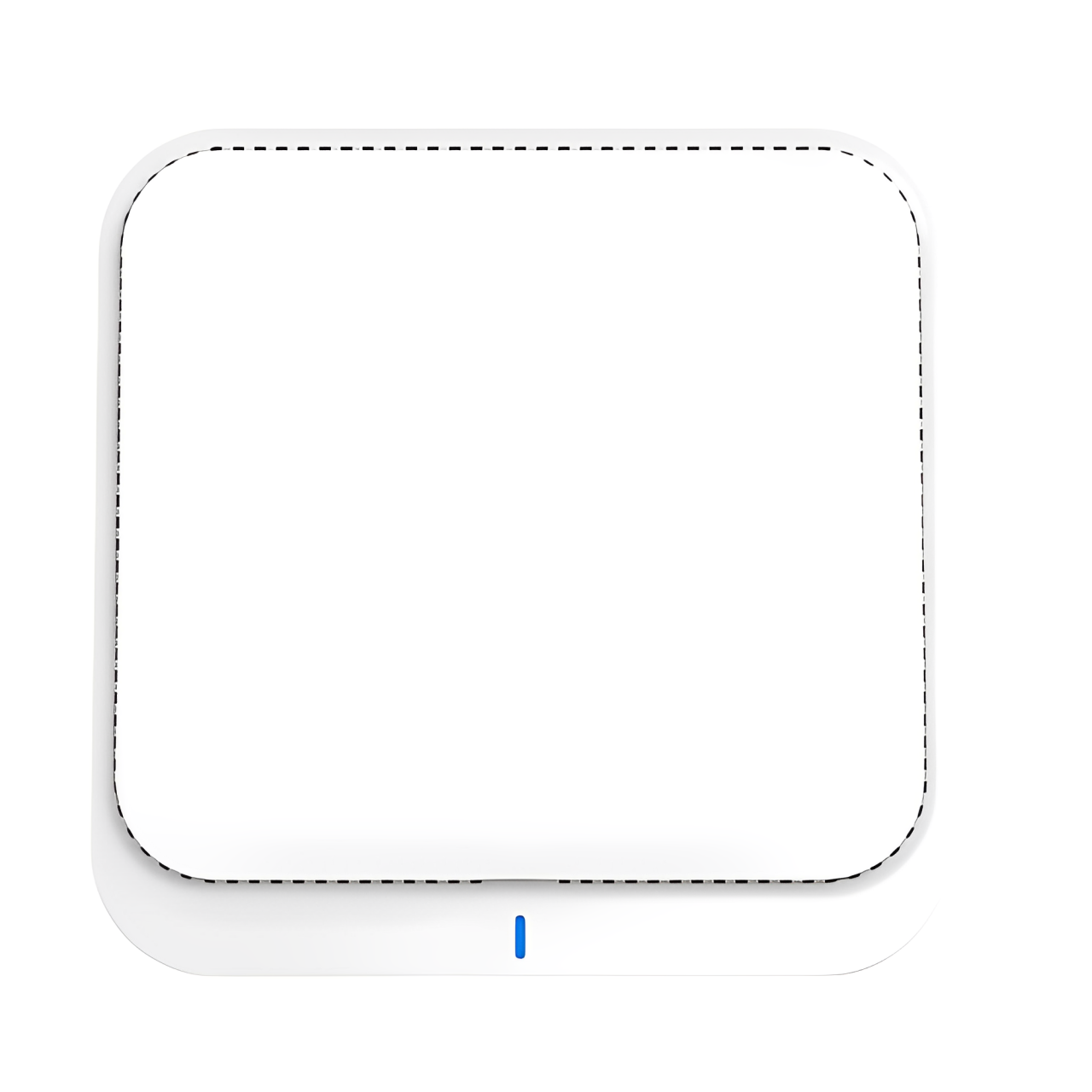

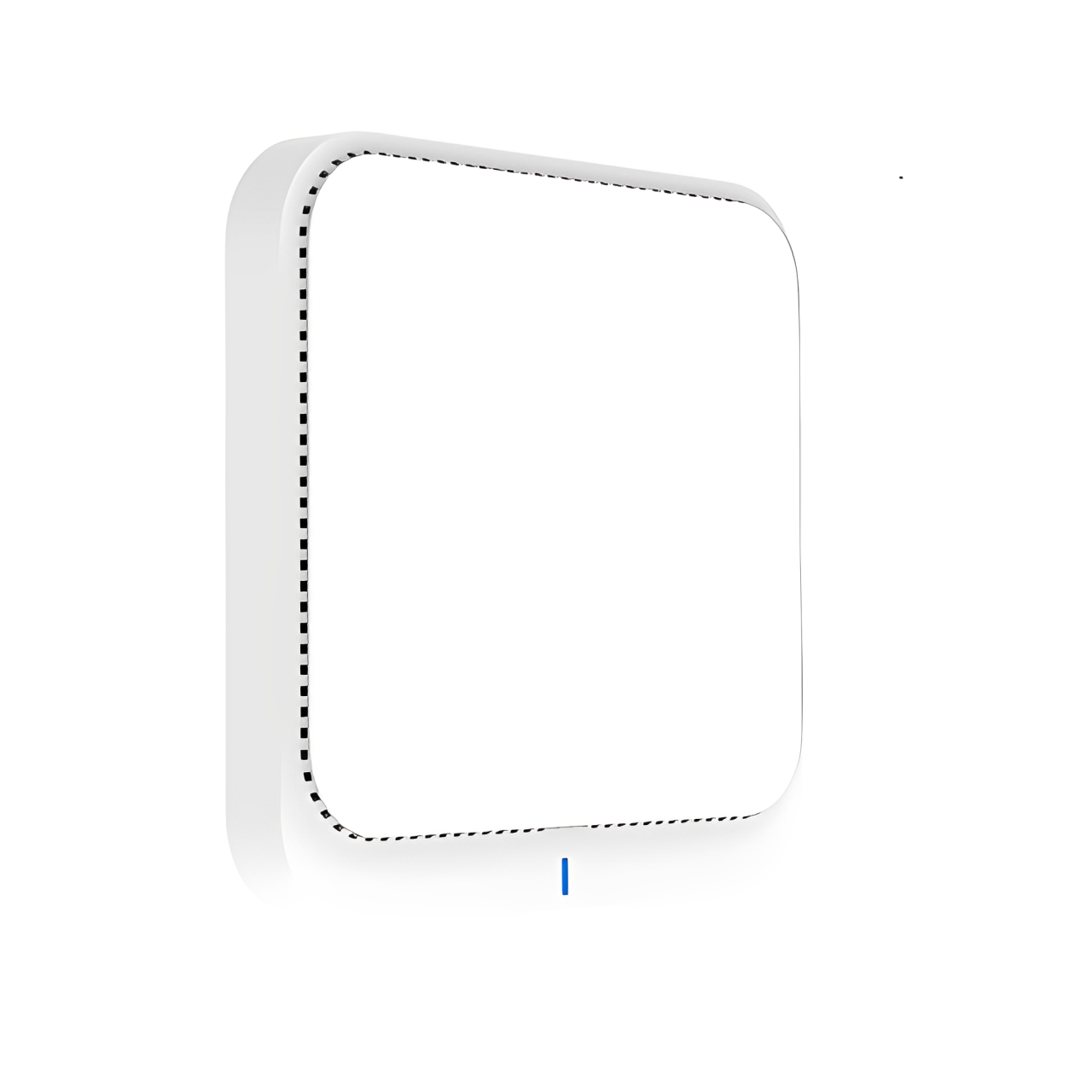

Specimen Track ceiling enterprise with high-speed connectivity, features an 11ax Wi-Fi standard Qualcomm Chipset and is a high-power industrial ceiling wireless access point. It supports MU-MIMO, Wave 2.0, OFDMA, and seamless roaming. The AP offers combined speeds of 1800 Mbps across two radios: 2.4 GHz (600 Mbps 11 ax 2 x 2) and 5 GHz (1200 Mbps 2 x 2). It includes 1G WAN and LAN ports, supports MU-MIMO and DL or UL-OFDMA modulation for faster Ethernet data rates and accommodating more users. This allows multiple users to upload or download data simultaneously. With narrower subcarrier spacing and longer symbol time, it enhances stability and data processing efficiency, making it ideal for high-density environments like university campuses, concert venues, and gymnasiums.

Features

• Comply with IEEE 802.11ax or ac or b or g or n, dual band, 1800Mbps Data Rate.
• With IPQ6000, Flash: SPI NOR 8MB (1.8v) + NAND 128MB, greatly improved the data processing performance.
• 1 x 10 or 100 or 1000Mbps WAN Port, 1 x 10 or 100 or 1000 Mbps LAN Port, faster Ethernet.
• With Skyworks power amplifier and FEM, 300mW high power, build in 3dBi MIMO antenna, stronger signal strength, more wireless coverage.
• Support active IEEE 802.3at 48V PoE standard.
• Comply with IEEE 802.3az standard, RF power adjustment and frequency analyzer for better application in different environment Support Seamless Roaming, OFDMA, 1024-QAM.

Technical Specifications
