Overview

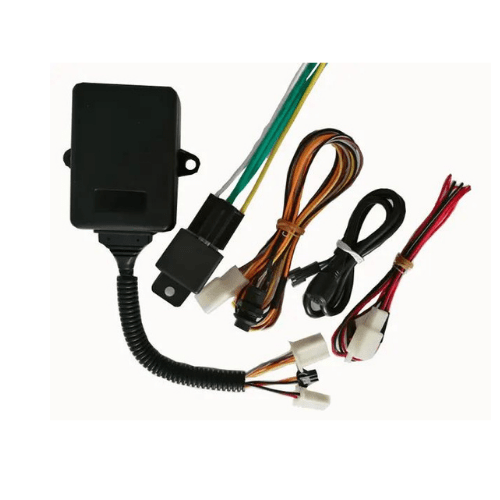

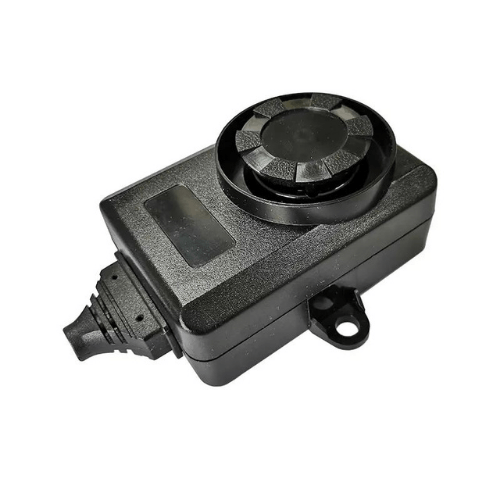

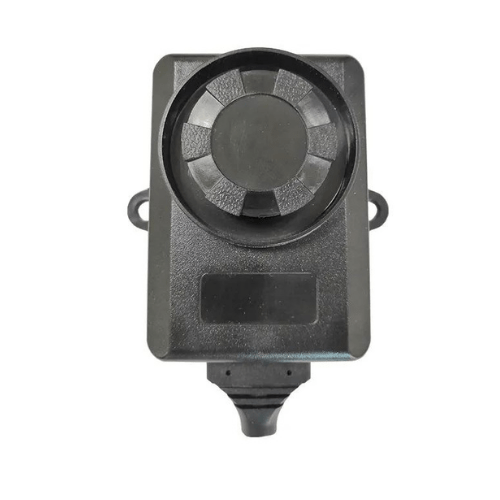

This Vehicle GPS Tracker has a temperature range between -13 oF to 140 oF, accuracy range of 39.37 in to 118.11 in and battery life of <12 hours.
Features
- Geo fence
- Over speed
- Real time tracking
Technical Specifications
| GSM/CDMA Module | QUECTEL M35 |
| Track view | PC, IOS APP, SMS Coordinate, Android APP |
| GSM Frequency | 850 MHz, 900 MHz, 1800 MHz or 1900 MHz |
| MCU Processor | ARM7 STM103FRCT6 |
| Internal Memory | 4MB (20000 Waypoints + Events) |
| Input Port | Ignition, Door, Panic, Charger Control, Microphone |
| Output Port | Buzzer, Immobilizer |
| LED Indicator | Red: Power, Green: GPS, Yellow: GSM |
| Working Power Range | 7 V to 55 V DC or 1.8 A |
| Consumption | Deep Sleep: <5mAh, Simple Sleep: <30mAh, Standby: 45 mAh to 80 mAh |
| Working Temperature | -13 o F to 140 o F (-25 ℃ to 60 ℃) |
| Arm or Disarm | By Remote Control or SMS or GPRS |
| Data Transmit | SMS or GPRS Communication |
| Size | 2.20 in x 3.07 in x 1.49 in (56 mm x 78 mm x 38 mm) |
| Weight | 1.32 lb (0.6 kg) |
