Features
- Long haul testing
- Multiple wavelength options
- Easy touchscreen operation
- Extended battery life
Technical Specifications
| Use | Fiber Optic Testing and Troubleshooting |
| Battery | Large-capacity lithium polymer, extended working hours |
| Storage | Includes memory card and SD card for large trace storage |
| Protective Design | Durable, dustproof, shockproof carrying case |
| Wavelengths | 850/1300 nm (multimode), 1310/1550 nm (single-mode) |
| Dynamic Range | 20 dB to 45 dB |
| Loss Threshold | 0.05 dB |
| Event Dead Zone | ≤ 3.28 ft (1 m) |
| Attenuation Dead Zone | ≤ 13.12 ft (4 m) |
| Optical Interface | FC/UPC (standard); FC/SC optional; UPC/APC optional |
| Testing Distance | 0.19 to 111.85 mi (0.3 to 180 km) |

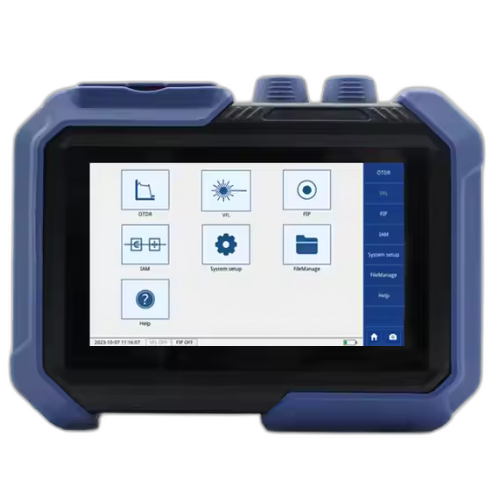

| Touchscreen | 7-inch display, easy operation |
| Visible Fault Locator (VFL) | Built-in, 650 nm, maximum testing distance of 1.86 mi (3 km) |
| Dimension | 6.97 in x 9.21 in x 2.60 in (17.7 cm x 23.4 cm x 6.6 cm) |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Weight | 2.87 lbs (1.3 kg) |
