Name: Gigabit Ethernet Tester, with Dual Ports RFC2544 Support - Specimen Track -
SKU: STRLEA-105

Features

Supports full-duplex 10/100/1000 Mbps Ethernet data stream
RFC2544 support (Throughput, Frame loss, Back-to-back, Latency)
Optional Y.1564 and RFC3393 support
L1/L2/L3/L4 BERT test
Up to 8 data streams with MAC, VLAN, MPLS, IPV4/IPV6, Payload, and Bandwidth
Configurable flow priority with CoS, ToS/DSCP
Online filtering and packet capture
Automatic SLA verification via RFC2544 and Y.1564
Dual-port functionality
Service Disruption Test (SDT) support
3-layer CoS configuration for Metro Ethernet service verification
Graphical display of test results
Specialized for One Gigabit Ethernet installation, operation, maintenance, and troubleshooting

Technical Specifications

Test Type	Handheld Gigabit Ethernet Tester

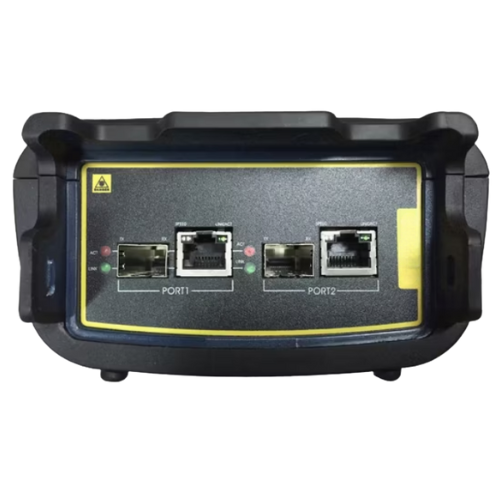

Interfaces	Dual 10/100/1000M Base-T electrical, Dual 1000M Base-X optical
Test Layer	Layer 1 to Layer 4 BERT test
Stream Generation	Up to 8 streams (MAC/VLAN/IP/TCP/UDP)
RFC2544 Test	Throughput, Latency, Frame Loss, Back-to-Back
Jitter Test	RFC3393 Jitter test for VoIP packets
Loopback Test	Layer 1 to Layer 4 loopback, smart loopback
Ethernet Monitoring	Through mode for network monitoring
Data Packet Management	Enable to drop data packet under through and loopback mode
Stream Generation	Up to 1000M with 3 Layer VLAN
Testing Tools	Ping, Trace Route, FTP Download/Upload, HTTP tools
Disruption Test	Ethernet service disruption test
Packet Capture	Capture and analyze packets at 1000M rate
Cable Test	CAT5 length and fault measurement
Bi-directional Test	Supported
Frame Generation	Enable to generate frame with random length
MAC/IP Stream Generation	Increment MAC and IP
Bandwidth Statistics	Layer 1 bandwidth statistics
Remote Control	Remote control by PC
Fiber Cable	LC/PC to LC/PC full-duplex single-mode, 3 meter
CAT5 Cable	9.84 feet (3 meters)
Optical Modules	1.25G 1310nm 15Km LC SFP, two
Dust Proof Caps	SFP optical and RJ45 electrical port caps (black rubber), two each
Power Adapter	AC/DC, 100-240V input, 15V output
User Manual & Software	Includes remote control software
Stylus Pen	3.54 in (9cm pen)
Test Report	Factory test report
