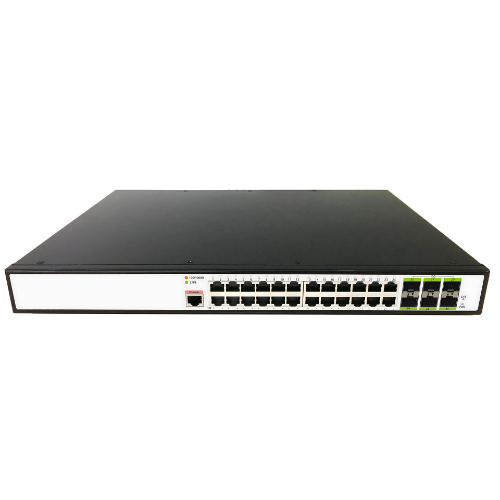

Gigabit Network Switch with 240 Gbps and 24 Gigabit Ports – Specimen Track

Name: Gigabit Network Switch with 240 Gbps and 24 Gigabit Ports - Specimen Track -
SKU: STREWF-196

High-capacity switch with 240Gbps, 24 Gigabit ports, 6 SFP+ 10G uplink ports, 4GB RAM, PoE support, robust security, and efficient fan cooled design.

SKU: STREWF-196 Category: Wi-Fi

Technical Specifications

Switching Capacity	240 Gbps
Max PoE Power Budget	370 W
Max PoE Power Budget for Single Port	60 W
Uplink Ports	6 × 10G SFP+ Port
Throughput	178.56 Mpps
MAC Capacity	32K
DRAM	4GB
Flash Memory	128 MB
Transmission Rate	10 Mbps or 100 Mbps or 1000 Mbps or 2500 Mbps
Communication Mode	Full-Duplex and Half-Duplex
Function	LACP, QoS, SNMP, Stackable, VLAN Support
DRAM	4 GB
Interface	24 Port 10 or 100 or 1000 or 2500Base to T ,6 Port 10G Base to R (SFP or SFP+),1 Port Console (With RJ to 45)
Power	Input 100 to 240V AC, 50 Hz or 60 Hz
Power Consumption	75W
Operating Humidity	20 to 85%RH (Non to Condensing)
Storage Humidity	5 to 95%RH (Non to Condensing)
Air Flow	FAN: Forced to Air Cooling
Operating Temperature	32 ⁰F to 104 ⁰F (0 ⁰C to 40 ⁰C)
Storage Temperature	68 ⁰F to 158 ⁰F (20 ⁰C to 70 ⁰C)
Dimension	17.3228 in x 1.7323 in x 12.9921 in (44.0 cm x 4.4 cm x 33.0 cm)
Weight	11.0231 lbs (5 kg)
