Overview

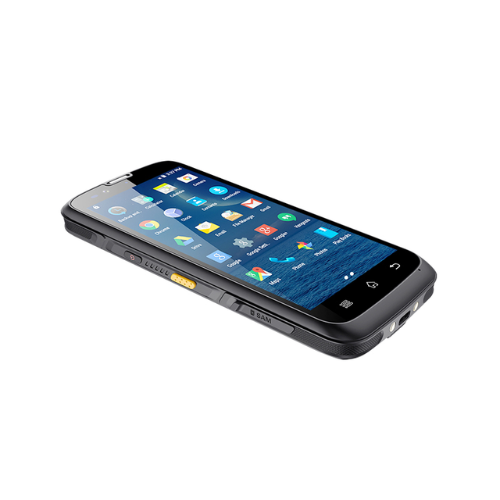

GAOTek’s Handheld Android 12 Rugged PDA with NFC Barcode Scanner and RFID is a durable and expandable handheld computer designed for industrial use. This device features a 5.7-inch HD display, barcode scanning, and NFC functionality, with support for quick charge and optional UHF sled for extended capabilities.With options such as fingerprint recognition, volume measurement, and built-in UHF, this product ensures flexibility and high performance. Its Wi-Fi 6-ready platform delivers faster data throughput and stronger security, making it ideal for logistics, warehouse, manufacturing, and retail operations.
Features
- Handheld data Terminal 1D 2D Scanner 4G
- Powerful data Collection Function
- 72-inch Super Toughened capacitive tough screen
- Withstand a Drop Hight of at least 1.5m
- Suitable for a variety of Harsh environment
- Ultra-Light & Thin
- Intelligent HC706
- More than 8 Hours of Uninterrupted Work
- Support Secondary Development Wide Range of Application
- Rich And Divers Transmission Functions
- 4G+Dual-Band WI-FI
- Professional NFC Reading and Writing
- Strict and Ingenious
Technical Specifications
| Category | Details |
| Product Status | Stock |
| Software Development Kit | Yes |
| Private Mold | Yes |
| Processor | MTK 6762 – Octa-core |
| Style | Handheld Computer |
| Memory | 3 GB + 32 GB or 4 GB + 64 GB |
| Operating System | Android 12 (upgrade path to 13 and 14 pending feasibility) |
| Display | 5.72 in HD full display (18:9), IPS 1440 x 720 |
| Touch Panel | Multi-touch, supports gloves and wet hands, Corning Grade 3 glass |
| Camera | Front: 5.0 MP (optional) or Rear: 13 MP autofocus with flash |
| Barcode Scanner (Optional) | 1D or 2D or QR codes; supports Zebra SE4710/SE2100, Honeywell N6603, etc. |
| Battery | 4300 mAh Li-ion, rechargeable, removable |
| Battery Life | Standby: 300+ hours, Continuous use: 8+ hours, Charging: 1 to 2 hours |
| Notification | Sound, LED indicator, vibrator |
| Interfaces | USB Type-C, USB 3.1, OTG, extended thimble |
| Card Slots | 1 x Nano SIM, 1 x Nano SIM or TF card |
| Audio | 2 microphones (noise cancellation), 1 speaker, receiver |
| Keypad | 1 power key, 2 scan keys, 2 volume keys |
| Sensors | Accelerometer, light, proximity, gravity |
| Communication – WLAN | IEEE 802.11 a/b/g/n/ac, 2.4G or 5G dual-band |
| Communication – WWAN (EU/Asia) | 2G: 850 to 1900 MHz; 3G: WCDMA 850 to 2100 MHz; 4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41 |
| Communication – WWAN (America) | 2G: 850 to 1900 MHz; 3G: 850 to 2100 MHz; 4G: B2/B4/B5/B7/B8/B12/B13/B17/B28A/B28B/B38 |
| Bluetooth | 4.0 |
| VoLTE | Supported, HD video voice calls |
| GNSS | GPS, AGPS, GLONASS, BeiDou, Galileo |
| SDK Support | Android/iOS, Java, Eclipse, Android Studio |
| Expansion | Up to 128 GB Micro SD card |
| NFC | Built-in, 13.56 MHz, ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
| NFC Range | 1.18 to 1.97 in (3 to 5 cm) |
| UHF RFID (Optional) | Supports Impinj E710 or R2000 modules, up to 98.4 ft (30 m) read range, 1200+ tags/sec |
| Accessories (Optional) | Wrist Strap, Rubber Bumper, Charging Cradle |
| Drop Resistance | Multiple 6 ft (1.8 m) drops to concrete |
| Tumble Test | 500 cycles (1000 drops, 1.6 ft / 0.5 m) |
| Operating Temperature | -4 °F to 131 °F (-20 °C to +55 °C) |
| Storage Temperature | -40 °F to 158 °F (-40 °C to +70 °C) |
| Humidity | 5% to 95% RH, non-condensing |
| Sealing | IP65 (spray) and IP67 (submersion) |
| ESD Protection | ±15 kV air discharge, ±8 kV conductive discharge |
| Weight | 8.54 oz (242 g, device with battery) |
| Dimensions | 7.0 in x 3.27 in x 0.67 in (178 x 83 x 17 mm) |
