Overview

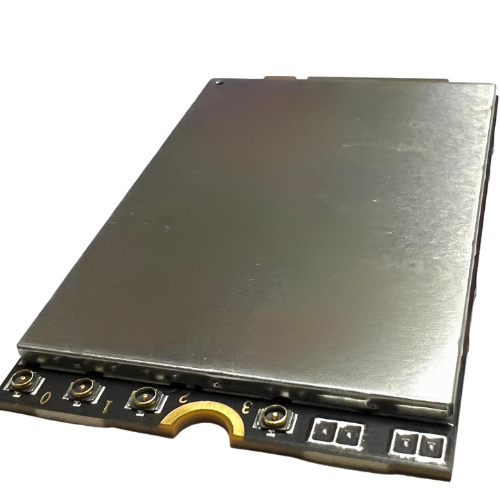

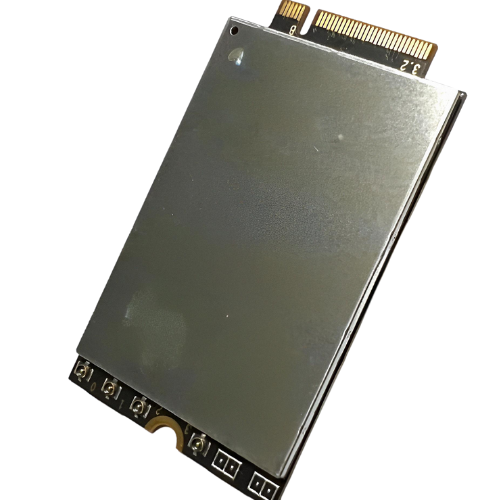

GAOTek’s Industrial 5G IoT M.2 Module with GNSS and LTE Connectivity is a high-performance 5G module optimized for IoT and eMBB applications. It is designed in an M.2 form factor and supports both 5G NSA and SA modes. This device is industrial-grade, compatible with LTE-A modules, and covers nearly all mainstream carriers worldwide. It includes an integrated GNSS receiver supporting GPS, GLONASS, BDS, and Galileo for fast and accurate positioning. With extensive Internet protocol support and USB/PCIe drivers for Windows, Linux, and Android, this product is suitable for industrial routers, gateways, STBs, laptops, rugged tablets, video transmission, and digital signage applications.
Features
- 5G/4G/3G multi-mode module in M.2 form factor, optimized for IoT and eMBB applications
- Worldwide 5G and LTE-A coverage
- Supports NSA and SA modes
- Multi-constellation GNSS receiver for fast and accurate positioning in any environment
Technical Specifications
| Application | M2M and IoT applications |
| Network | 5G Sub-6 GHz, LTE-FDD, LTE-TDD, WCDMA |
| LTE-FDD Bands | B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71 |
| LTE-TDD Bands | B34/38/39/40/41/42/43/48 |
| WCDMA Bands | B1/2/4/5/8/19 |
| Operating System Support | Windows 7/8/8.1/10 |
| Operating Temperature | -22 °F to 167 °F (-30 °C to 75 °C) |
| Weight | 0.31 oz (8.7 g) |
| Size | 1.18 in x 2.05 in x 0.09 in (30.0 mm x 52.0 mm x 2.3 mm) |
