Overview

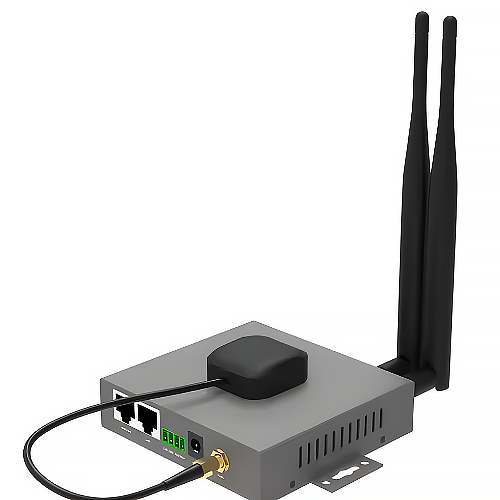

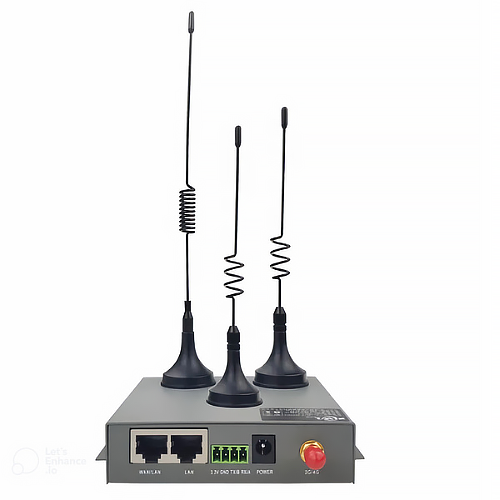

GAOTek Industrial Router with GPS is the internet of thing mobile broadband router and a machine to machine(M2M) industrial cellular router.High data speed via 4G network, 3G/2G backward compatible.It is an ideal wireless data transfer device for applications transferring large data load because of ultimately fast transfer speed in 4G network reaching up to 150Mbps download and up to 50Mbps upload.
Technical Specifications
| Wireless Modules | Industrial cellular module |
| Broadband | Max 150 Mbps (DL) or 50 Mbps (UL) |
| Transmit Power | < 23 dBm |
| Receiving Sensitivity | < -108 dBm |
| GPS Frequency | 1575.42 MHz |
| Sensitivity | Capture -158 dBm, track -162 dBm |
| TTFF | Cold Start 28 seconds, Warm start 18 seconds, Hot Start 1 second |
| Standard | Support IEEE802.11b/g/n/ac standard |
| Theoretical BroadBand | 54 Mbps (b/g),150 Mbps (n) |
| Security Encryption | It supports a variety of encryption WEP, WPA, WPA2, etc. |
| Transmit Power | About 15 dBm (11n),16 to 17 dBm (11g),18 to 20 dBm (11b) |
| Receiving Sensitivity | <- 72 dBm at 54 Mbps |
| WAN | 10 M or 100 M Ethernet port (RJ45 socket), adaptive MDI/MDIX, can be switched to LAN |
| LAN | 10 M or 100 M Ethernet port (RJ45 socket), adaptive MDI/MDIX |
| Serial | RS232 or Rs485 port, baud rate 115200 to 2400 Bps |
| Indicator Light | With “PWR”, “WAN”, “LAN”, “NET” indicator lights |
| Antenna | 3 x standard SMA female antenna interfaces, namely cellular, GPS and WiFi |
| SIM/USIM | Standard 1.8 V or 3 V card interface |
| Power | Standard 3-PIN power jack, reverse-voltage and over-voltage protection |
| Reset | Restore the router to its original factory default settings |
| Standard Power | DC 12 V / 1 A |
| Power Range | DC 7.5 V to 32 V |
| Consumption | About 3 W at 12 V DC |
| Shell | Metal housing |
| CPU | Industrial 32 bits CPU, Qualcomm QCA9531, 650 MHz |
| FLASH/RAM | 16 MB or 128 MB |
| Relative Humidity | < 95 % non-condensing |
| Work Temperature | -22 °F to 167 °F (-30 °C to 75 °C) |
| Storage Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Size | 3.93 in x 3.74 in x 0.98 in (10 cm x 9.5 cm x 2.5 cm) |
| Weight | 9.17 oz (260 g) |
| Packaging Weight | 28.21 Ib (800 g) |
