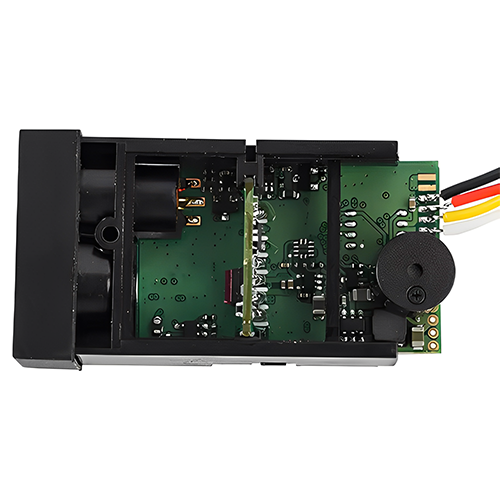

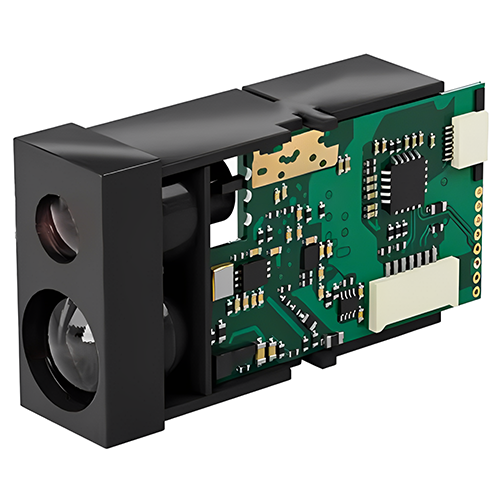

Laser Range Sensor Smallest Distance Lidar Laser Module – Specimen Track

Discover the  Laser Range Sensorr, 50m range, the smallest and most efficient Lidar module for precise distance measurement in compact applications.



SKU: STRMPS-306 Category:

 Technical Specifications

Dimension1.89″ x 1.02″ x 0.51″ In
MaterialABS  and PCB
Frequency3 Hzto  550nm, Visible red
Laser Type510 to 550 nm, Visible red
Laser ClassClass II (IEC 60825 to 1:2014),  < 1 mw
Measurement MethodPhase shift principle
Communication LevelTTL (3.3 V)
Input VoltageDC 2.5 V to 3.6 Vto 104oF (0° to 40°C)
Working Temperature32 °F to 104 °F (0 °C to 40 °C)
Storage Temperature-13 °F to 140 °F (-25 ℃ to 60 ℃)
Measurement Range Support1.12 to 2.362.2
Dimension1.89 in x 1.02 in x 0.51 in
(48 mm X 26 mm X 13 mm)
Weight0.317 oz (9 g)
