Overview

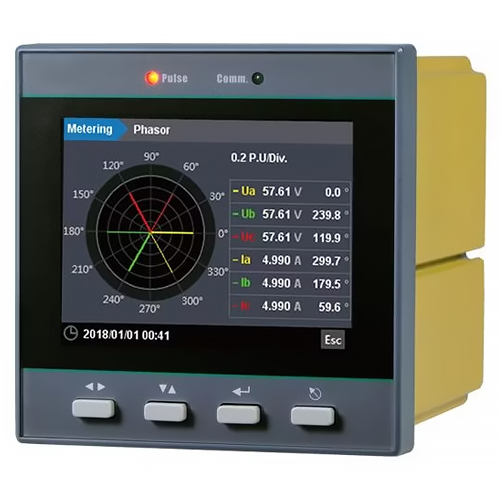

Specimen Track multiple phase electric monitor quality analyzer is CET’s latest offer for the advanced Power Quality Monitoring of Incomers and Critical Feeders for Utilities, Data Centers, High-Tech Manufacturing Facilities and Heavy Industries. Housed in an industry-standard DIN form factor measuring 96x96x119.5mm, the product’s compact size is perfectly suited for today’s space restricting environment. The product features quality construction with metal enclosure, advanced Power Quality and Revenue-Accurate Measurements, High-Resolution Waveform Recording Capabilities, comprehensive Data Logging with 2GB memory, extensive I/O and a user friendly, IPS Color Dot-Matrix Display @ 320×240. It also provides either an I4 Input for Neutral Current Measurement or a 0/4-20mA Analog Input for measuring external transducer signal such as Residual or Leakage Current. With a standard 100BaseT Ethernet Port and an RS-485 port supporting multiple protocols, the product becomes a vital component of an intelligent Power Quality Monitoring System.
Technical Specifications
| Customized | Non-Customized |
| Allow Customized Logo | Yes (MOQ > 1000) |
| Power Supply (Standard) | 95 VAC to 250 VAC or VDC ± 10 %, 47 Hz to 440 Hz |
| Input Voltage | 400 VLN or 690 VLL |
| Power Supply (Optional) | 20 VDC to 60 VDC |
| Rated Current | 5 A or 1 A |
| Measuring Energy | 0 kWh to 99999999999.999 kWh |
| Accuracy | IEC 62053-22 Class 0.2S |
| Frequency | 50 Hz or 60 Hz |
| Communication | Dual Ethernet Ports, RS-485 Port, 4G (Optional) |
| Class (kWh) | 0.2S |
| Display (Blacklit) | Color IPS 320 x 240 (Blacklit |
| True RMS Sampling Rate | 256 |
| Battery Backed Real Time Clock | Yes |

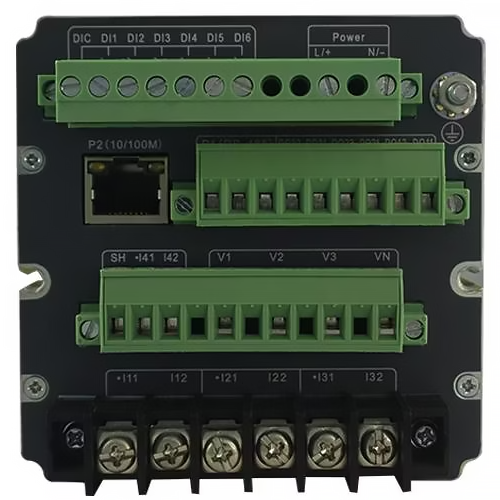

| Digital Input (DI) | 6 |
| Mechanical Digital Output (DO) or Solid Staye Output (SS) | 3DO |
| Analog Input (AI) | 2 opt. |
| Protocol | Modbus RTU, Modbus TCP, HTTPS, SNTP, SMTPS, FTPS< SNMP, Ethernet Gateway, BACnet or IP, IEC61850 |
| Working Environment | Temperature -4 ⁰F to 131 ⁰F (-20 ⁰C to 55 ⁰C), Humidity below 90 % RH |
| Specification | 3.78 in x 3.78 in x 4.7 in (9.6 cm x 9.6 cm x 11.95 cm) |
