Overview

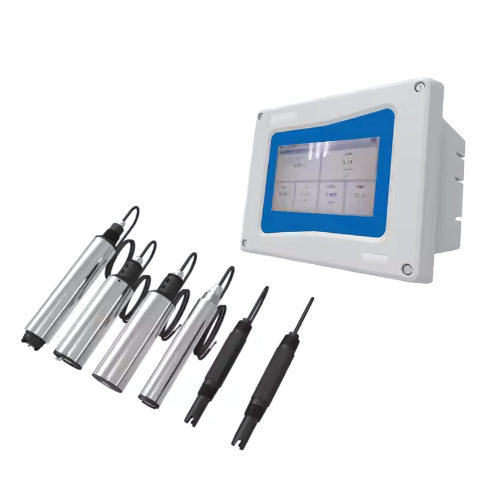

Specimen Track Online Turbidity Sensor for Water Quality Monitoring is Based on the Infrared Absorption Scattered Light Method and Combined With the Application of ISO7027 Method, Self-Cleaning Function can Assures the Stability of Data and Reliability of Performance With the Built-in Self-Diagnosis Function, it can Make Sure the Accurate Data be Delivered Besides, the Installation and Calibration is Quite Simple. Application Widely Used in Sewage Plants, Water Plants, Water Stations, Surface Water, Farming, Industry and Other Fields.
Technical Specifications
| Customized Support | OEM, ODM, OBM |
| Material | SUS316L (Ordinary Version), Titanium Alloy (Seawater version), Upper and Lower Cover: PVC |
| Power | 12 V DC, 24 V DC (Optional) |
| Application | Water Turbidity Monitoring |
| Measuring Range | 0.01 NTU to 200 NTU, 0.01 NTU to 3000 NTU |
| Output | Modbus RS485, 4 mA to 20 mA, 0 V DC to 5 V DC |
| Waterproof Rate | IP68 or NEMA6P |
| Calibration | Sample Calibration, Slope Calibration |
| Accuracy | Less than ±5%, ±0.1 NTU max |
| Working Temperature or Pressure | 32 °F to 113 °F (0 °C to 45 °C), 0 psi to 58.01 psi (0 MPa to 0.4 MPa) |
| Dimensions | 10.07 in × 2.36 in (25.6 cm × 6 cm) (Length × Dia) |
