| Processor | Quad-core 1.5GHz, 64-bit ARM Cortex-A53 |
| Power Supply | 802.3af PoE Input, 12 VDC with M12 connector |
| Working Current | Typical 3.6W, Max 4.8W |
| Radio Chip | SX1302 |
| Frequency | AU915 |
| Tx Power | 27 dBm Max |
| Protocol | V1.0 Class A/Class B and V1.0.2 Class A/Class B/Class C |
| Ports | 1 × 10/100/1000Mbps RJ45 (PoE PD supported), auto MDI/MDIX |
| Standard | IEEE 802.11 b/g/n, 2.4 GHz |
| VPN Tunnel | DMVPN/IPsec/OpenVPN/PPTP/L2TP/GRE |
| Processor Feature | Quad-Core 64-bit Processor: powerful performance |
| Traffic Handling | Semtech SX1302: Remarkable ability to handle traffic loads |
| Internet Connections | Ethernet, Wi-Fi, or 3G/4G backup |
| LoRaWAN Protocol | Flexible network accessing, wide connection |
| Waterproof | IP67: Designed for the outdoors, fearless of wind and rain |
| Network Server | Connect to Server via TCP/HTTP/MQTT |
| Capacity | Up to 2000 end nodes |

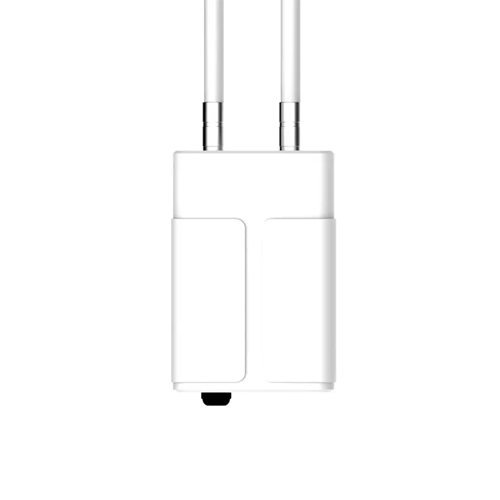

| Antenna | 2 × Antenna connector |
| Ethernet | 1 × 10 / 100 / 1000Mbps with PoE In |
| Reset | Reset to factory settings |
| DC Power | M12 connector |
| SIM Slot | 1 × Mini-SIM (2FF) |
| Micro SD | SD card slot |
| Waterproof Specifications | IP67: Designed for the outdoors, fearless of wind and rain |
| Power Input | 802.3af PoE Input, 12 VDC with M12 Connector |
| Application Areas | Smart City, Smart Agriculture, Smart Energy, Smart Industry, Smart Mine, Instrument |
| Operating Temperature | -40°F to 158°F (-40°C to +70°C) |
