Overview

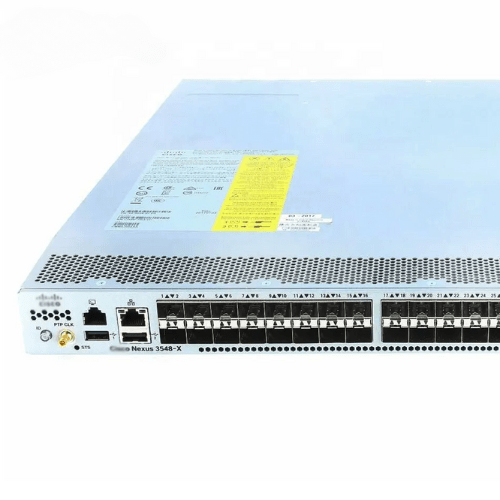

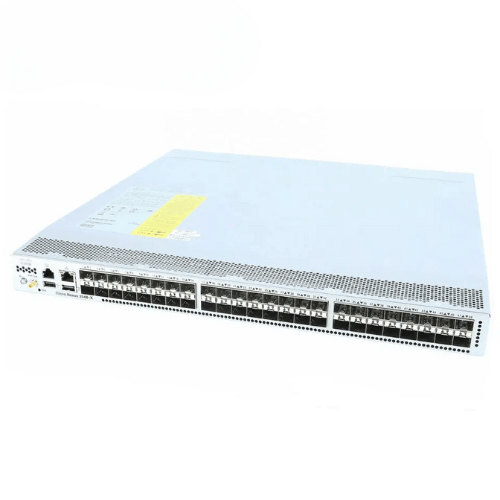

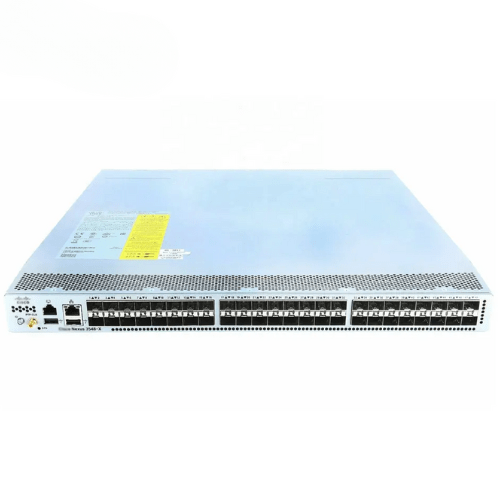

Specimen Track 48-Port SFP+ Ethernet Switch operating at 1 or 10 Gbps. It features dual redundant hot-swappable power supplies, four redundant fans, a 1-PPS timing port, two management ports, a serial console port, a USB port, and a Locator LED.
Features

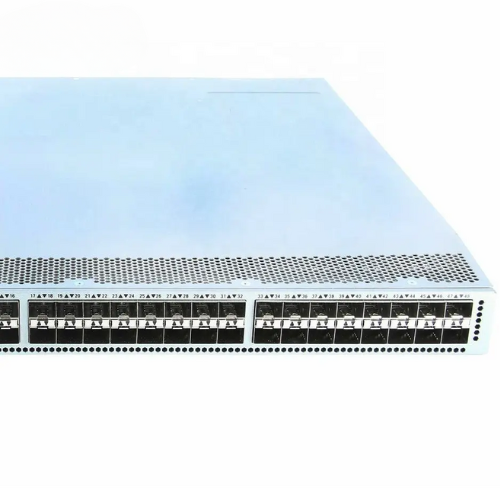

- 48 fixed Enhanced Small Form-Factor Pluggable (SFP+) ports (1 or 10 Gbps);

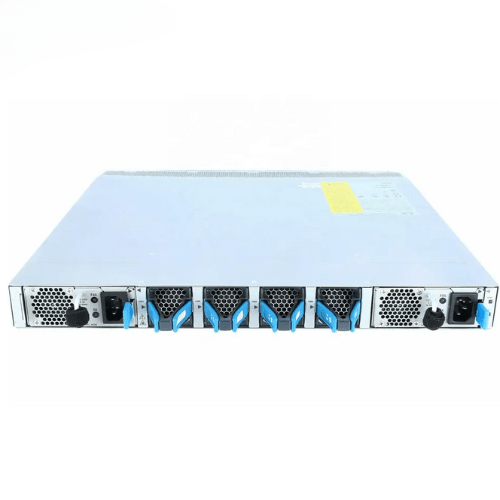

- Dual redundant hot-swappable power supplies
- One RS-232 serial console port and One USB port
- Locator LED and Locator LED button
Technical Specifications
| Ports | ≥48 |
| Function | LACP, QoS, SNMP, Stackable, VLAN Support |
| Transmission Rate | 1000 Mbps / 10000 Mbps / 40000 Mbps |
| Switch Capacity | 960 Gbps |
| Forward rate | 720 mpps |
| Device Type | Nexus 3000 Series switch |
| Typical operating power | 112 W |
| Maximum power | 213 W |
| Typical heat dissipation | 383 BTUs per hour |
| Maximum heat dissipation | 727 BTUs per hour |
