Overview

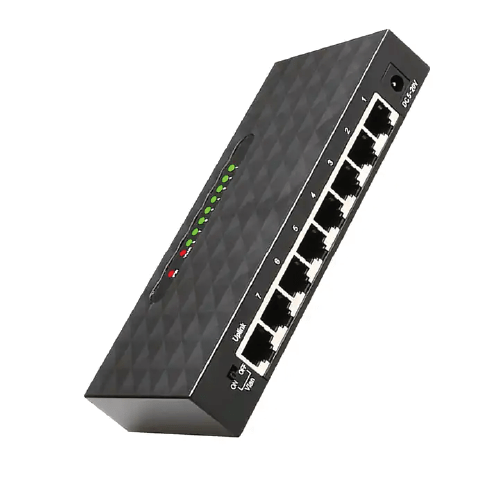

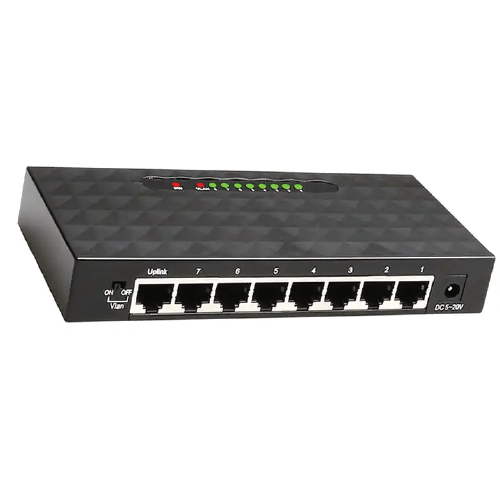

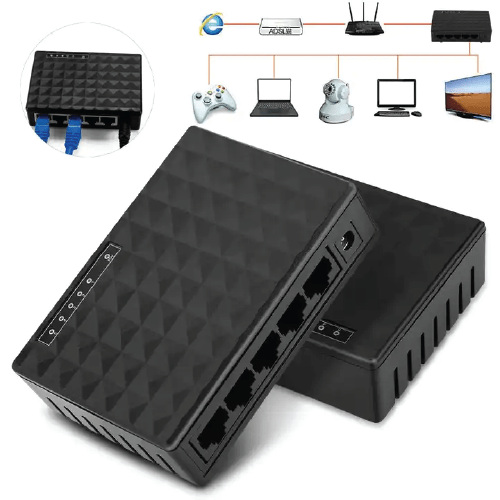

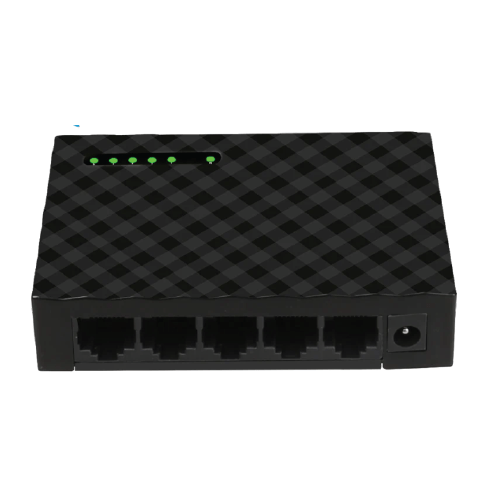

Specimen Track 8-port ethernet network switch provides 5 10/100Mbps auto-negotiation ports, which you can use to establish a LAN network, or extend the uplink network. It supports desktop installation and wall-mounting. With stable connectivity and easy-to-use features, it is perfect for the networking of school dormitories, small offices, home offices and video surveillance.
Features
- Five 10 / 100 Mbps auto-negotiation ports
- IEEE 802.3 x flow control provides reliable data transfer
- LED to indicate activity on each port and energy-efficient technology for power savings
- Auto-MDI / MDIX eliminates the need for crossover cables
- Plug-n-play connectivity easily installs into any network
Technical Specifications
| Interface | 5 x RJ45 Ports |
| Transmission Rate | 10 / 100 Mbps Self-Adaptive |
| Material | ABS |
| Protocol Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az |
| Color | Black |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Power Supply Plug | US Plug |
| Power Supply Input | 100 V AC to 240 V AC, 50 / 60 Hz |
| Power Supply Output | DC 5 V 500 mA |
| Power Supply Wire Length | Approx. 39.37 in (1 m) |
| Power Consumption | 1.5 W (MAX) |
| Size | 3.94 in x 2.76 in x 1.18 in (100 mm x 70 mm x 30 mm) |
